VONROC Saw table TS504AC: put your job on its feet

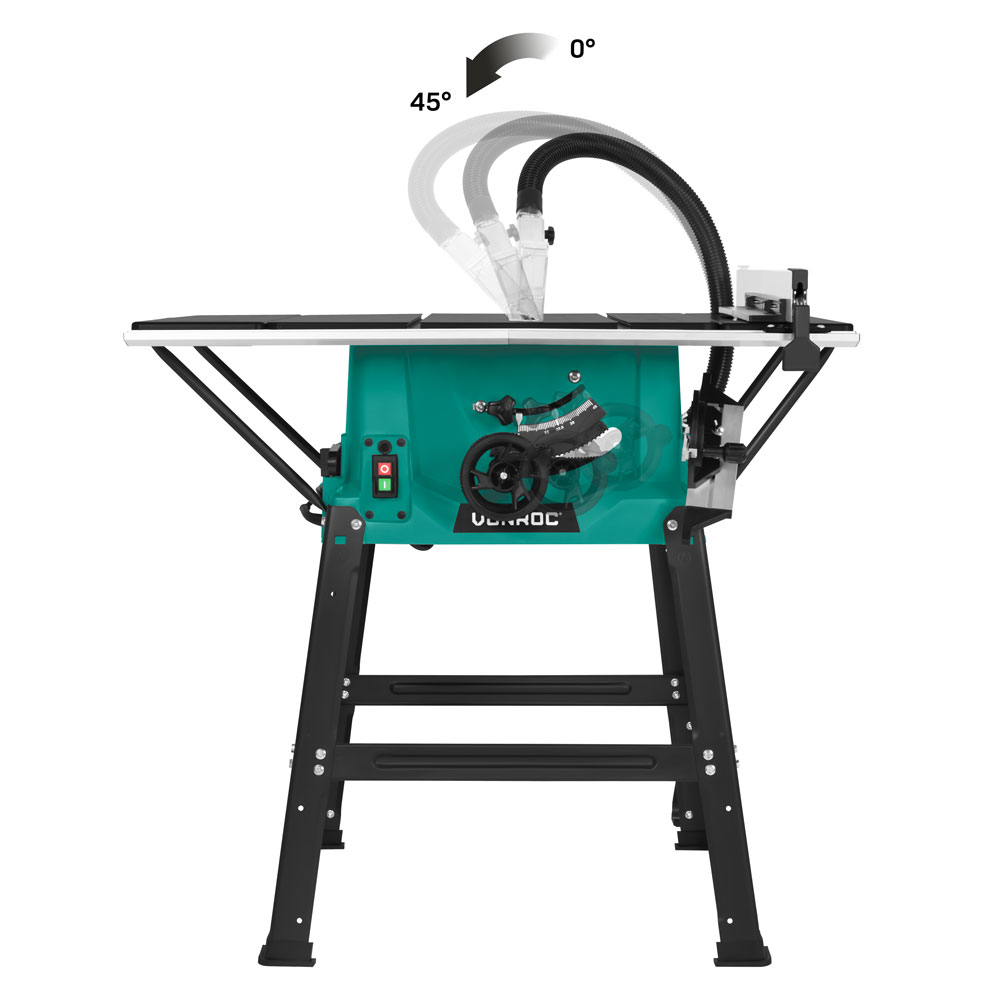

Big job? Big machine! For serious sawing work, you need a saw table that is sturdy, saws accurately and performs powerfully. Welcome to the TS504AC: the largest and most complete saw table in the VONROC series – built for DIYers who don't want to do a half job. With its robust base and generous worktop, this machine is ideal for processing large sheets and panels such as MDF, plywood, OSB or chipboard. You can also effortlessly cut furniture panels, laminate, veneer panels and slats and planks of solid wood to size. The tilting saw head makes sawing up to 45° possible, and with the included guides you can make tight and precise cuts at a desired angle.

Powerful, accurate and built with high-quality components

With a power of 2000W and a speed of 5000/min, the TS504AC effortlessly saws through both soft and hardwood. The maximum sawing capacity is impressive: 85 mm at 0° and 65 mm at 45°, so that even larger jobs are no problem. The soft-start function prevents shocks when switching on and peak loads on your power group – a valuable feature that you rarely find in this price range. The double-clamping aluminum parallel guide, the precise miter guide and the sturdy steel table construction ensure stability and control with every saw cut. Thanks to the extra spacious worktop, you can also work safely and stably with large sheets. The machine is finished in detail with high-quality components such as quality bearings and greases, making it ideally suited for heavy sawing jobs for the serious do-it-yourselfer.

Safety, comfort and ease of use

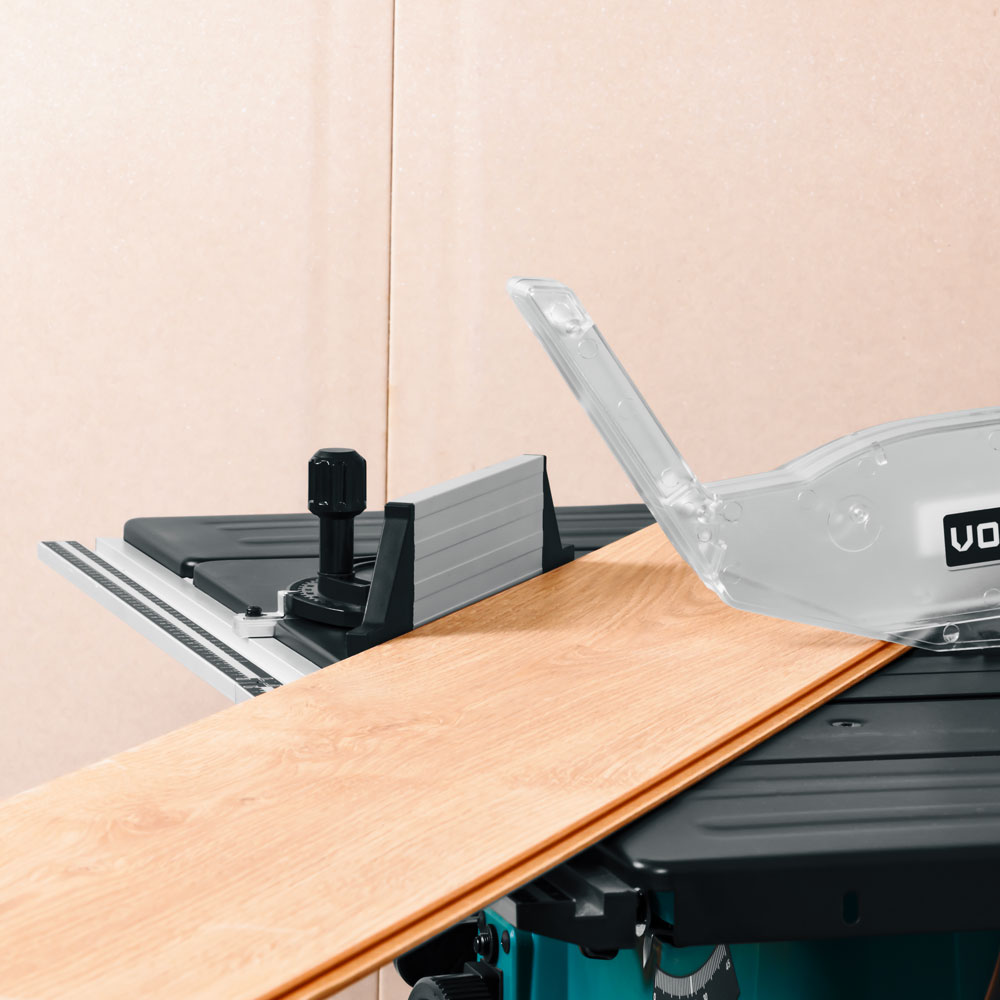

The TS504AC combines considerable performance with well-thought-out features that make your work safer, neater and more pleasant. The aluminum ruler runs over the full width of the worktop, and the parallel guide is equipped with a handy magnifying glass with which you can quickly and accurately read the size. All accessories – from push stick to keys and an extra saw blade – can be stored neatly and safely in the integrated storage system. The transparent saw cover offers a good view of your workpiece and the adjustable riving knife reduces the chance of kickback. The machine is also equipped with overload protection with automatic shutdown and reset function. For a clean workplace, connect a vacuum cleaner to the double dust extraction – this splits into two points, so that extraction takes place both above and below the blade at the same time. With the standard included 60T saw blade you make fine and clean cuts – a noticeable difference compared to the common, coarser 24–40T blades.
In short: a powerful saw table, particularly complete in finish and details – both in terms of components, ease of use and safety.

Main features of the Saw Table:

• Ideal for straight, miter and cross cuts
• Worktop dimensions: 89.5 x 58.3 cm
• Powerful 2000W motor with 5000/min revolutions
• Saw angle adjustable from 0° to 45°
• Soft-start and overload protection
• Double-clamping parallel guide for maximum precision
• Precise ruler over full width (incl. magnifying glass)
• Handy storage system for accessories
• Transparent saw cover and adjustable riving knife for visibility and safety
• Includes 60T saw blade for tight, fine cuts
• Double dust extraction for clean and efficient working

Good to know:

The saw table comes standard with a 60-tooth Ø250 x 30 x 2.8/1.8 mm saw blade, so you can get started right away. Would you prefer to saw even finer or would you like an extra blade in stock? Then add an 80T saw blade or an extra 60T copy to your order.

- 60T Ø 250 x 30 x 2.8/1.8 mm saw blade (TS803AA)

- 80T Ø 250 x 30 x 2.8/1.8 mm saw blade (TS804AA)

Looking for a more compact saw table? Then take a look at the TS505AC . This model has no base or table extensions, but it does have the same powerful power. Ideal if you have less space, but don't want to compromise on performance.
- Compact saw table 2000W – Ø250mm | Incl. 60T saw blade (TS505AC)

What's in the environmentally friendly packaging?

The Saw Table – 2000W (TS504AC) comes in an environmentally friendly box without full colour printing.

Content:

• 1 x Saw table – 2000W (TS504AC)
• 1 x Saw blade 60T Ø 250 x 30 x 2.8/1.8 mm (TS803AA)
• 1 x Base
• 2 x Table extension
• 1 x Hose for dust extraction
• 1 x Push stick
• 1 x Parallel guide
• 1 x Miter guide
• 2 x Wrench (for saw blade and riving knife assembly)
