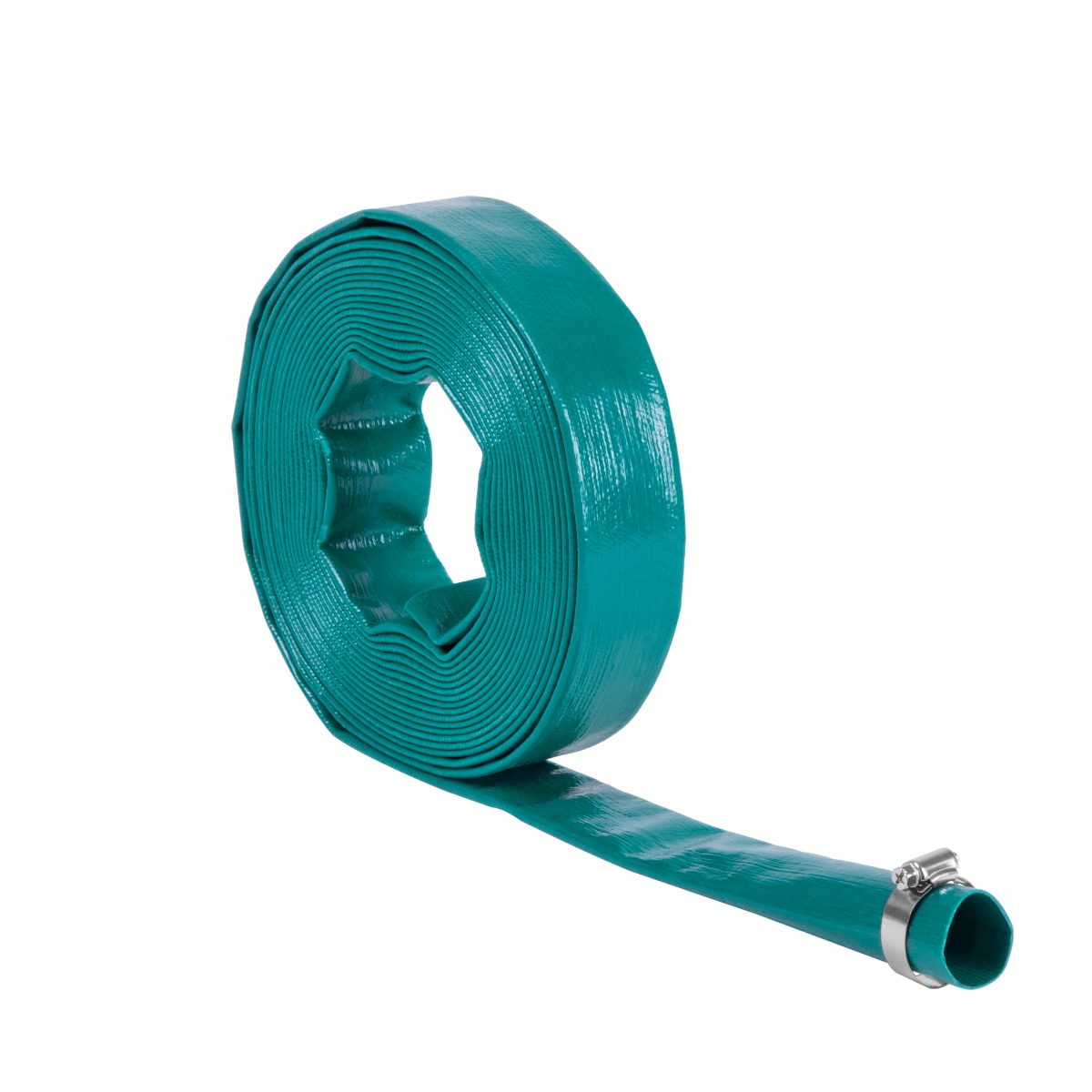

VONROC SP801AA Submersible pump drain hose

Universal submersible pump drain hose

This submersible pump drain hose from VONROC is suitable for draining (polluted) water, among other things. The hose has a length of 10 meters and is suitable for all submersible pumps with a 32mm hose connection.

Key benefits of the VONROC drain hose for submersible pumps

• Including stainless steel hose clamp.
• Including woven nylon layer.
• Suitable for all submersible pumps with a 32mm hose connection.
• Large flow capacity due to the inner diameter of no less than 32mm. This allows you to make maximum use of the submersible pump capacity.
• Maximum pressure: 8 bar.

Tips for use

For maximum throughput capacity, we recommend shortening the hose connection of the submersible pump to the large 32mm hose connection. So saw/cut off the smaller diameters. Then the hose can be attached to the 32mm spout by using the supplied stainless steel hose clamp.

Good to know

This hose is suitable for the following VONROC submersible pumps: SP501AC , SP502AC , SP503AC , SP504AC , SP505AC , SP506AC and the SP507AC .

Technical specifications

• Hose type: submersible pump drain hose – drain/pressure hose
• Inner diameter: 32mm
• Outer diameter: 34.5mm
• Hose length: 10m
• Inner layer: PVC
• Intermediate layer: woven nylon
• Outer layer: weather-resistant/UV-resistant PVC
• Maximum pressure: 8 bar
• Hose clamp range: 25-38mm
• Hose clamp material: stainless steel AISI 304 (18/8)
• Suitable for hose connection: 32mm
• Applications: draining (polluted) water, among other things

What is in the packaging?

• 1x Flat water hose / submersible pump drain hose 10m x 32mm – SP801AA
• 1x Hose clamp 25-32mm, stainless steel AISI 304 (18/8)
