ELITE SCREENS EZ FRAME - Projectiescherm Projection screen

Elite Screens Projection Screen - FEATURES

Active 3D

4K

180°

High Contrast

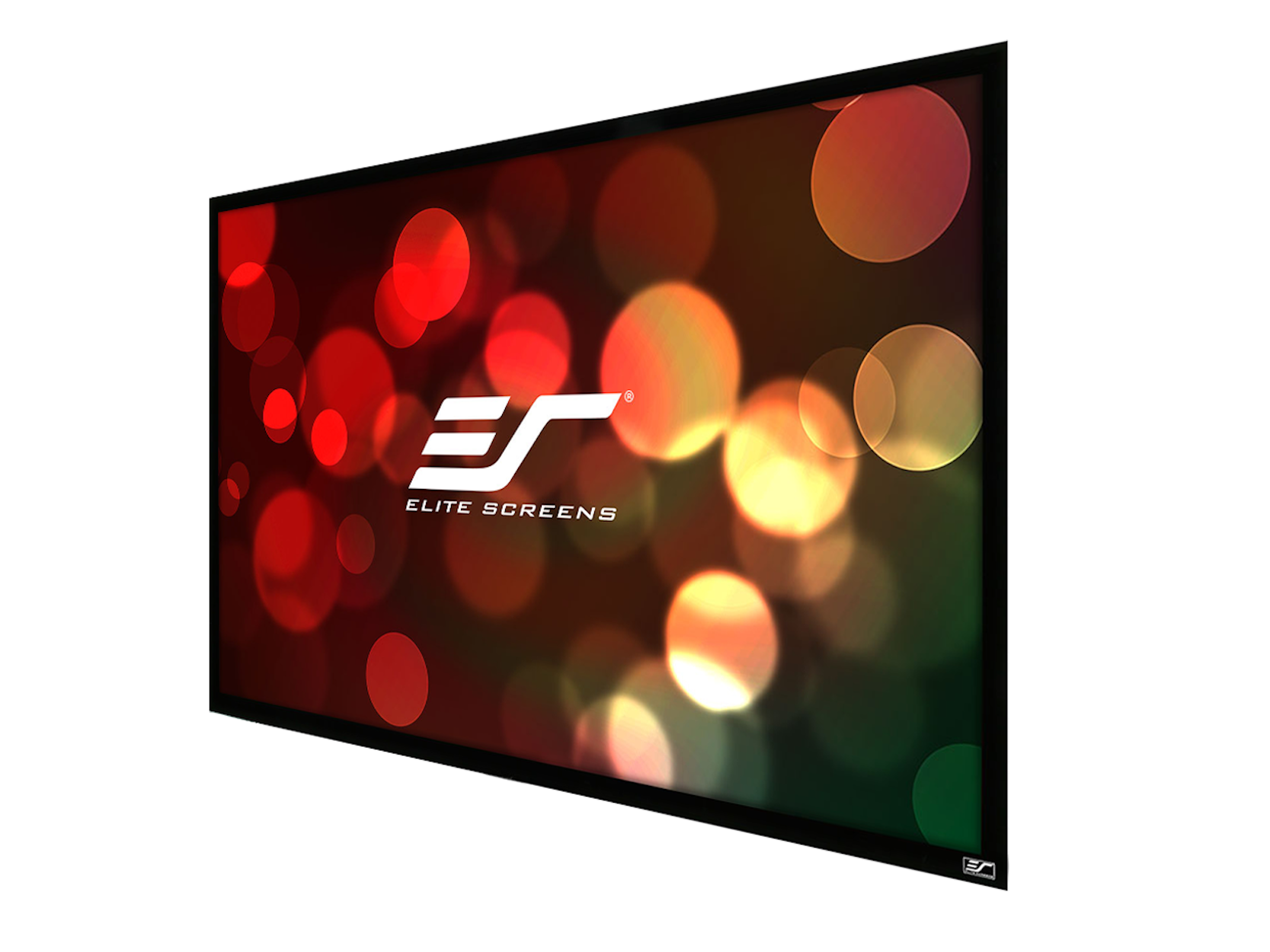

Product Information "EZ FRAME"

The ezFrame Frame Screen Series is a high quality frame screen with a 6 cm wide velvet flocked aluminum frame. Because the fabric is firmly attached to the frame, optimal flatness is guaranteed. The ezFrame Series offers a variety of options in different aspect ratios (16:9, 4:3, 21:9, 16:10) and fabric types, such as ISF-certified CineWhite or CineGrey5D fabric. For the 16:9 and 21:9 formats, you can also purchase an acoustically transparent screen fabric (AcousticPro 1080P3) to accommodate speakers behind the screen. If space permits, a framed screen is the optimal solution for your home theater and, when combined with CineGrey 5D fabric, is the perfect high-contrast screen with full daylight capability.

CANVAS TOWELS

CineWhite
- Matte White material screen - 1.1 gain - Active 3D, 4K Ultra HD and HDR capable - 180° viewing angle (90° L&R) - Black back - Wide light distribution thanks to uniform dispersion - Compatible with normal projectors on electric screens; & with normal, short and UST projectors on fixed-frame screens

5D CineGrey - Screen fabric that absorbs ambient light and improves contrast - Exceptional and superior brightness with sharp images - Gain: 1.5 - 80º viewing angle (L&R 40º) - Compatible with 4K UHD and Active 3D - Suitable for use with ordinary projectors: the minimum distance between the projector and the screen should be 1.5 times the projection width.

OPTIONAL CANVAS TOWEL

AcousticPro 1080P3 - optionally available**

• Acoustically transparent screens: speakers behind the screen - Wide uniform dispersion - maintains brightness - Gain: 1.0 - 180° viewing angle (90°L/R) - Compatible with 4K UHD and Active 3D - No moiré - Average attenuation: -3.09 dB - NFPA 701 certified - Suitable for use with conventional projectors

Design and installation design:

Basic frame screen with visible frames for home theater and professional needs

Flocked velvet, 6 cm wide aluminum frame

Easy wall mounting and installation

Adjustable mounting plates for even tension

Sliding wall mounts

Scope of delivery:

Projection screens

Frame mounting kit (consisting of 6 frame parts plus connecting parts and screws)

Sliding wall bracket

Fiberglass mounting plates and tension rods to hold the sailcloth in place

Mounting kit with dowels, screws, mounting plates and wall brackets included

-CineGrey 5D - suitable for: standard throw projectors - ALR: screen that absorbs ambient light for optimal contrast Image diagonal (inch-inch) 110 inch-16:9 / 5D CineGrey / 244 x 137 - Aspect ratio (16:9) Gain: 1.5 - Black
