ATEN VS134A VGA Video Splitter, 450MHz, 4-voudig VGA Video Splitter

ATEN

Art.-Nr. 89907268

To compare
To the technical data

Online in stock

Delivery 24-06-2026 - 25-06-2026

+ € 0,–

To compare

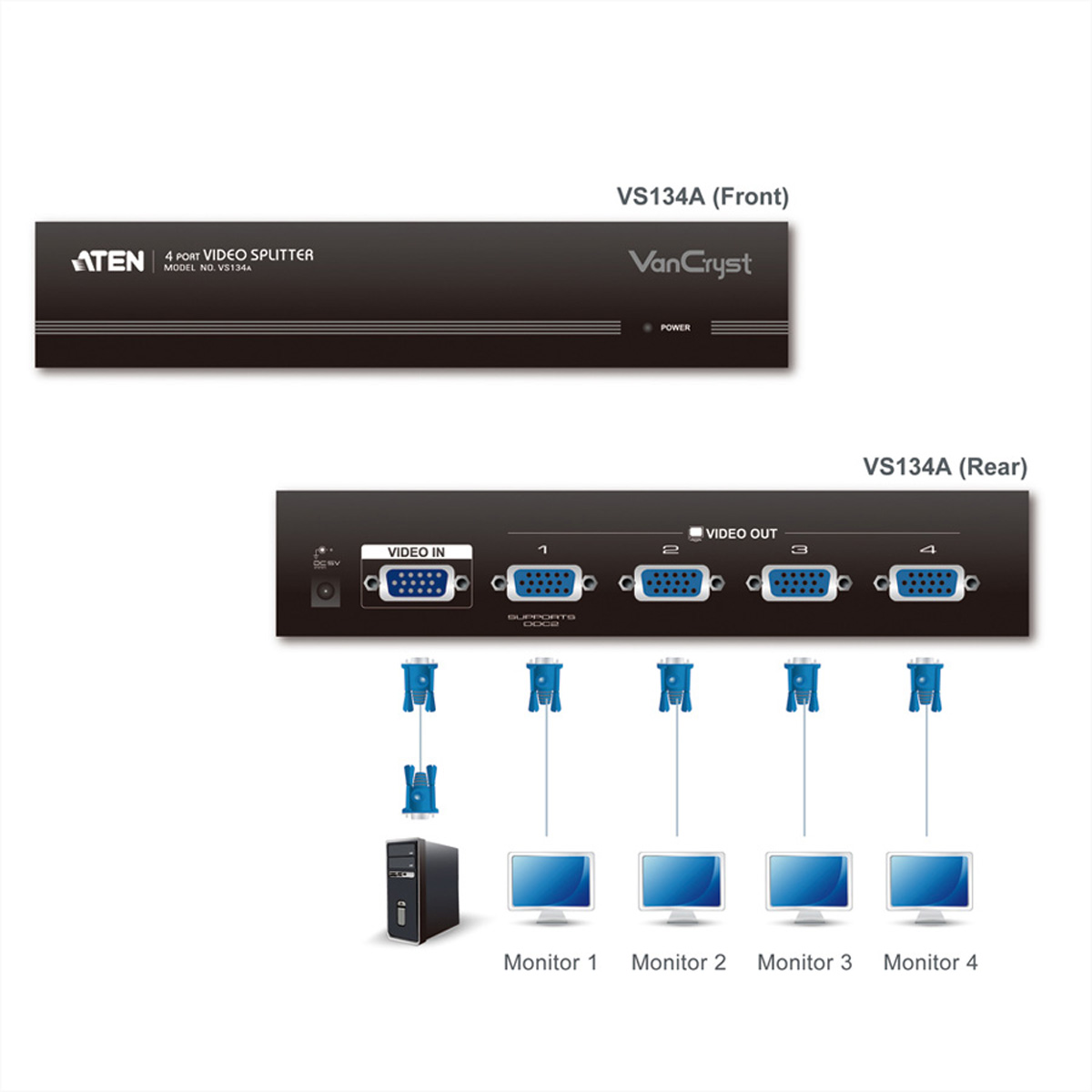

4-port VGA splitter (450MHz) - One graphic input is divided into 4 graphic outputs. The VS134A graphics splitter is a signal amplifier that multiplies the image from a signal source to 4 output devices. The device can be cascaded at up to three levels, meaning that up to 64 image signals can be made available at distances up to 65 m. These features make the device an optimal tool for broadcast systems to the public.... . One graphic input is distributed among 4 graphic outputs. Supports a bandwidth of up to 450 MHz. Cascading on up to 3 levels - results in up to 64 graphic signals. Large transmission distances - up to 65 m. Enhanced graphics quality - resolutions up to 2048 x 1536. Supports VGA, XGA, SVGA, UXGA, QXGA and Multisync monitors. Built-in 1.5 GHz amplifier maintains image signal quality over longer distances. Metal housing

Features

Product type

VGA Video Splitter

Integrated tuner

No

Special features

One graphics input is split between 4 graphics outputs; Supports up to 450MHz bandwidth; Cascading on up to 3 levels -<gt/> up to 64 graphics sign; Large transmission distances - up to 65m; Enhanced graphics quality - resolutions up to 2048 x 1536

Color (by manufacturer)

black

Weight (according to the manufacturer)

0.61 kg

Weight

680 g

Scope of delivery

1x VS134A graphics splitter, 1x 0AD6-1005-10EG power supply, 1x user manual

Width

75.1 mm

Height

44 mm

Depth

200 mm
