ATEN

Art.-Nr. 89907174

ATEN VS0102 VGA Video Splitter, 450MHz, Audio, RS232, 2-voudig VGA Video Splitter

ATEN

Art.-Nr. 89907174

To compare
To the technical data

Online in stock

Delivery 24-06-2026 - 25-06-2026

+ € 0,–

To compare

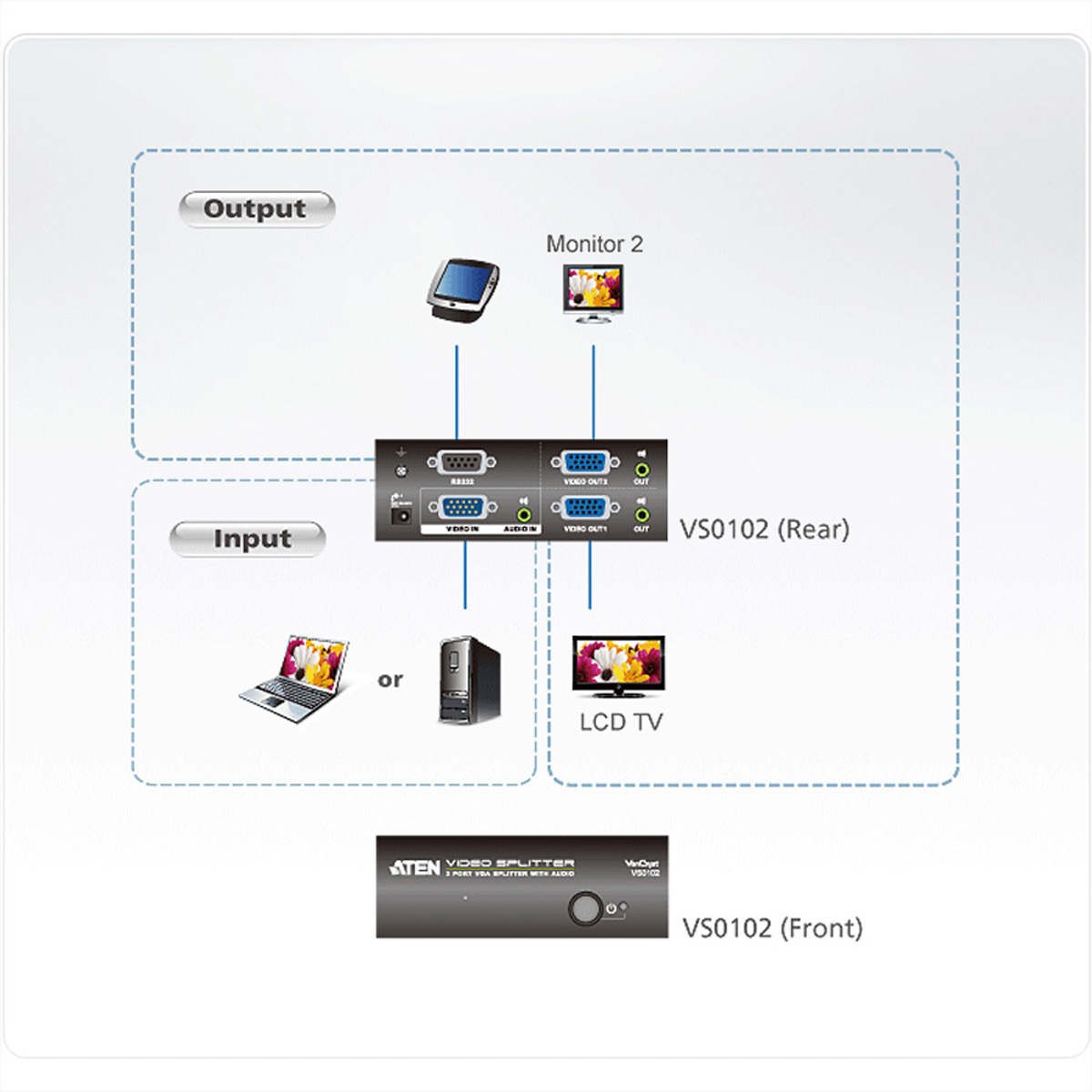

2-port VGA/Audio splitter (450MHz) - One graphics input is split into 2 graphics outputs. The VS0102 2-port VGA splitter with audio from ATEN allows you to output a single VGA graphic signal with audio to up to 2 displays. The stereo audio can be controlled completely independently. The splitter supports video bandwidths up to 450 MHz, ensuring optimal image quality and resolutions up to 1920 x 1440.... . In addition, the VS0102 has a built-in RS-232 interface, making it easy to integrate into existing systems, allowing the splitter to be easily controlled via a high-performance controller or the PC... . The VS0102 is ideal for conference and training rooms, as well as for broadcasting to multiple screens simultaneously. It can be easily cascaded into three levels, allowing a single image signal to be projected onto up to 8 screens without loss of quality.

Features

Product type

VGA Video Splitter

Integrated tuner

No

Special features

One graf. input split to 2 graf. outputs; Enhanced image quality - resolutions up to 1920 x 1440; Supports up to 450MHz bandwidth; Long transmission distances - up to 30m; Supports VGA, SVGA, UXGA, WXGA and Multisync monitors

Color (by manufacturer)

black

Weight (according to the manufacturer)

0.46 kg

Weight

460 g

Scope of delivery

1x 2-port VGA splitter with audio transmission, 1x power adapter, 1x instruction manual

Width

76.1 mm

Height

44 mm

Depth

130 mm
