ATEN

Art.-Nr. 101037654

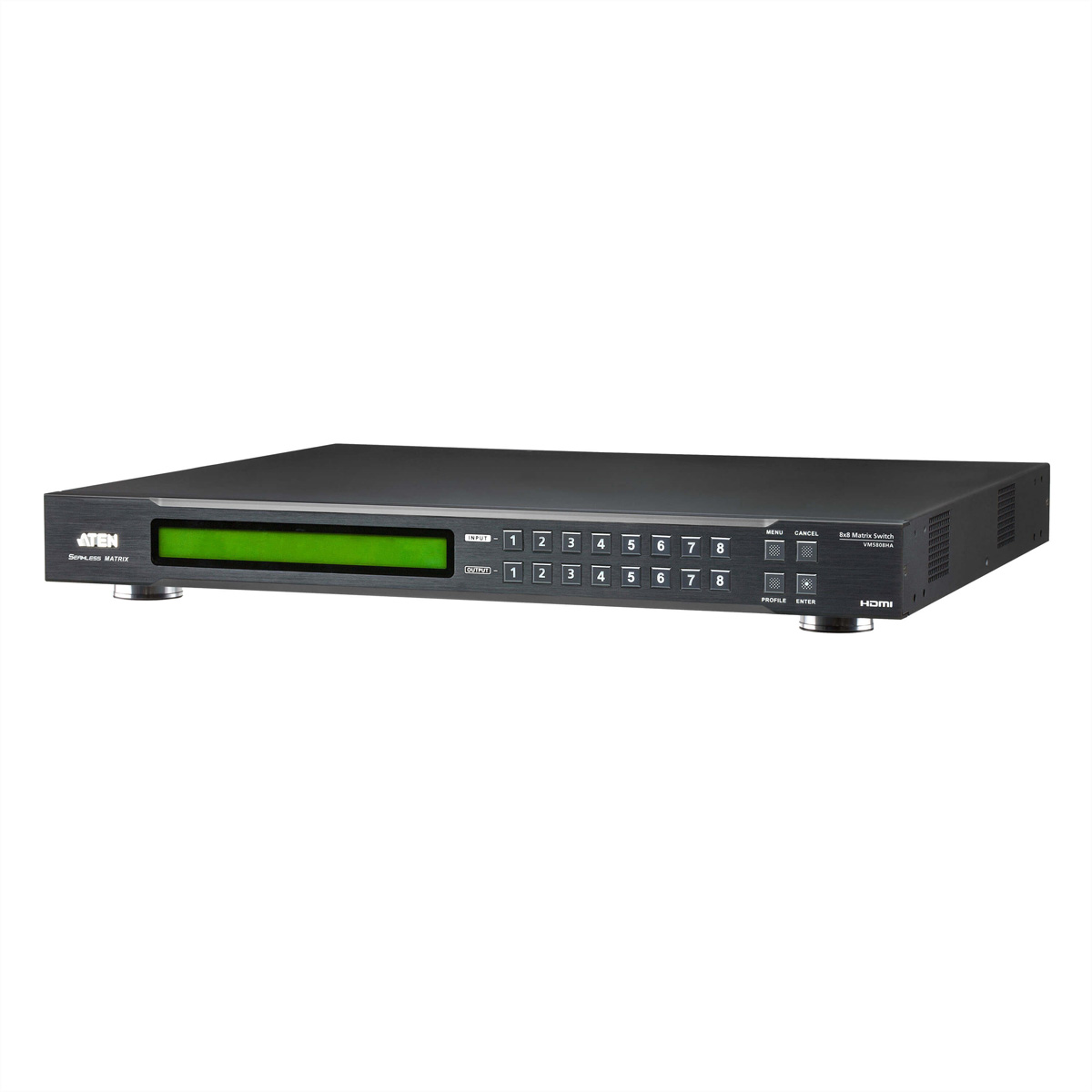

ATEN VM5808HA 8x8 HDMI Matrix Switch met Schaalfunctie HDMI Video Matrix Switch

ATEN

Art.-Nr. 101037654

€5365.92
To compare
To the technical data

Online in stock

Delivery 25-06-2026 - 27-06-2026

+ € 0,–

To compare

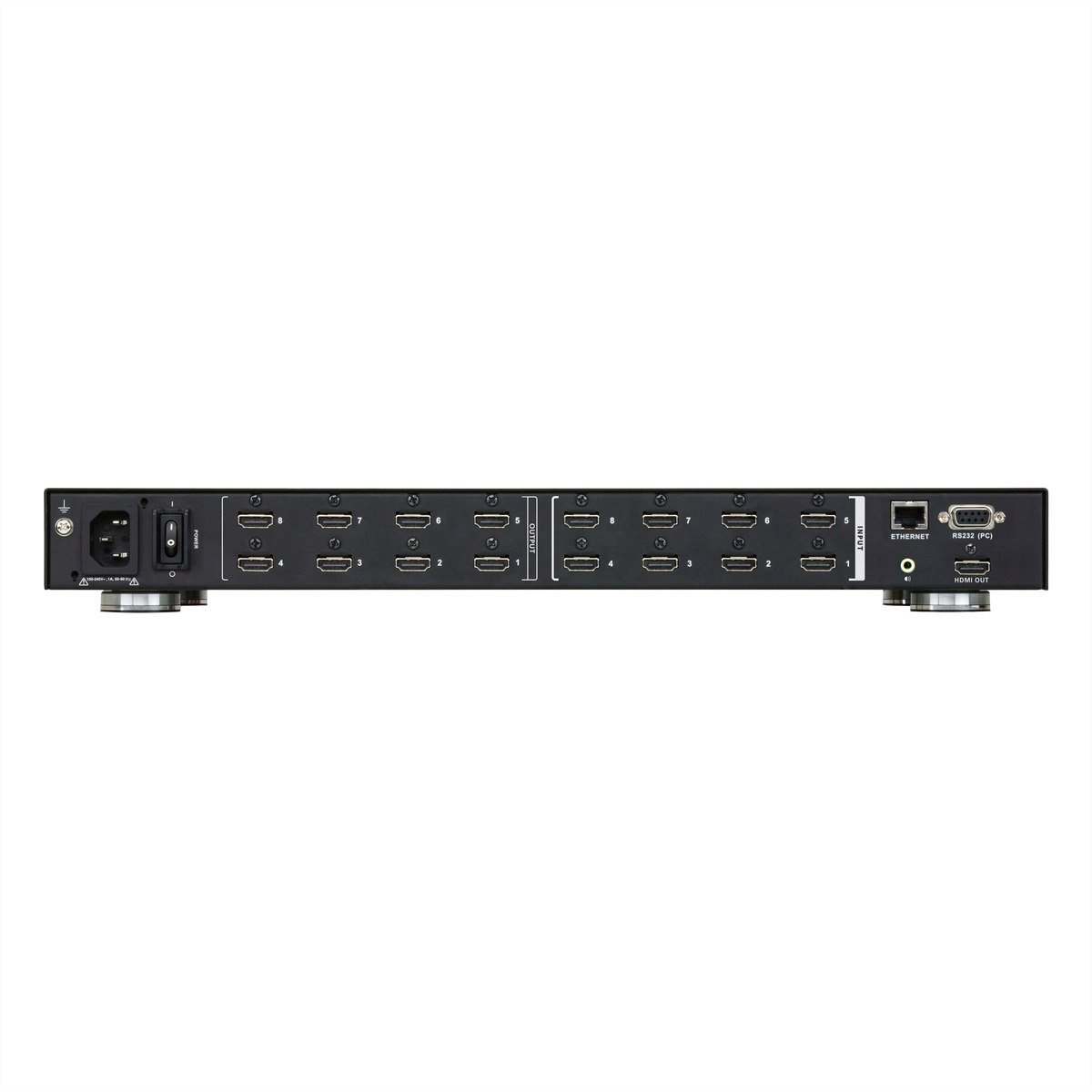

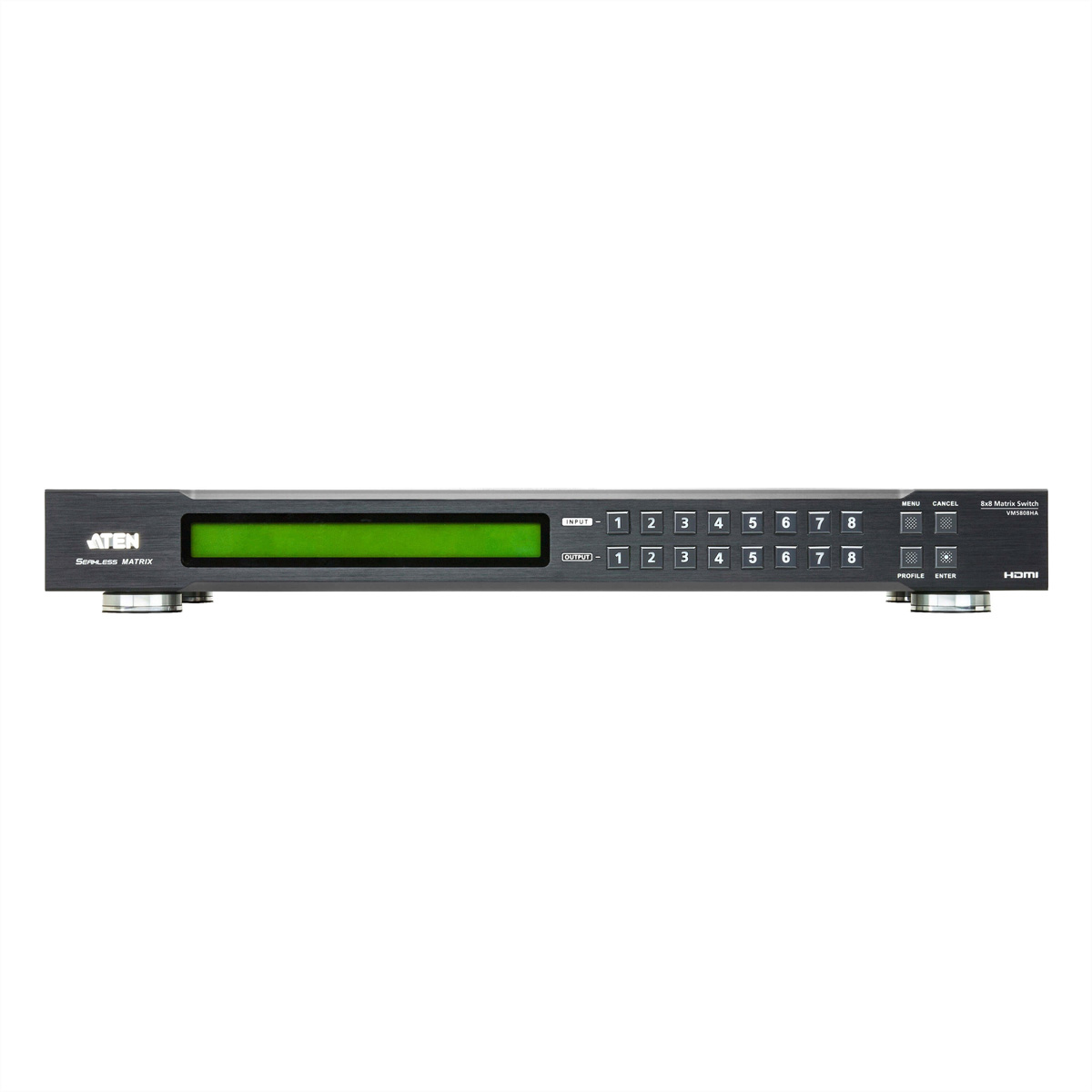

Ultimate video wall solution. The 8 x 8 HDMI matrix switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels without sacrificing flexibility.... Various methods are available to control the device, such as: For example, via front panel push buttons, RS-232 and Ethernet connections (Telnet/Web GUI). In addition, the VM5808HA supports the ATEN Video Matrix Control app to display and control device status.... It can also be integrated with the ATEN Control System, a platform on which Ethernet-based ATEN Video Matrix Switches and third-party devices (e.g., projectors, lights, AV equipment) are centrally monitored, managed and controlled... Signal management is facilitated by the front-panel LCD display, which gives the user a quick overview of all connector connections. In addition, the local HDMI output allows real-time monitoring of multiple sources on a single screen, right where the matrix switch is located.

Features

Product type

HDMI Video Matrix Switch

Integrated tuner

No

Maximum transfer speed

6.75 Gbit/s

Special features

Connects up to 8 HDMI sources; Local HDMI output; Seamless Switch™ - continuous video stream; Excellent image quality; Ultimate video wall solution

Color (by manufacturer)

black

Weight (according to the manufacturer)

5.54 kg

Weight

5.54 kg

Scope of delivery

1x VM5808HA, power cable, mounting kit, manual

Width

378.2 mm

Height

44 mm

Depth

432.4 mm
General Product Safety
GTIN4710469342127
Product typeHDMI Video Matrix Switch
Manufacturer
ManufacturerATEN INFOTECH N.V.
E-mail[email protected]
EU establishedYes
Address suffixMijnwerkerslaan 34, 3550 Heusden-Zolder, Belgium
