ATEN
Art.-Nr. 89907058

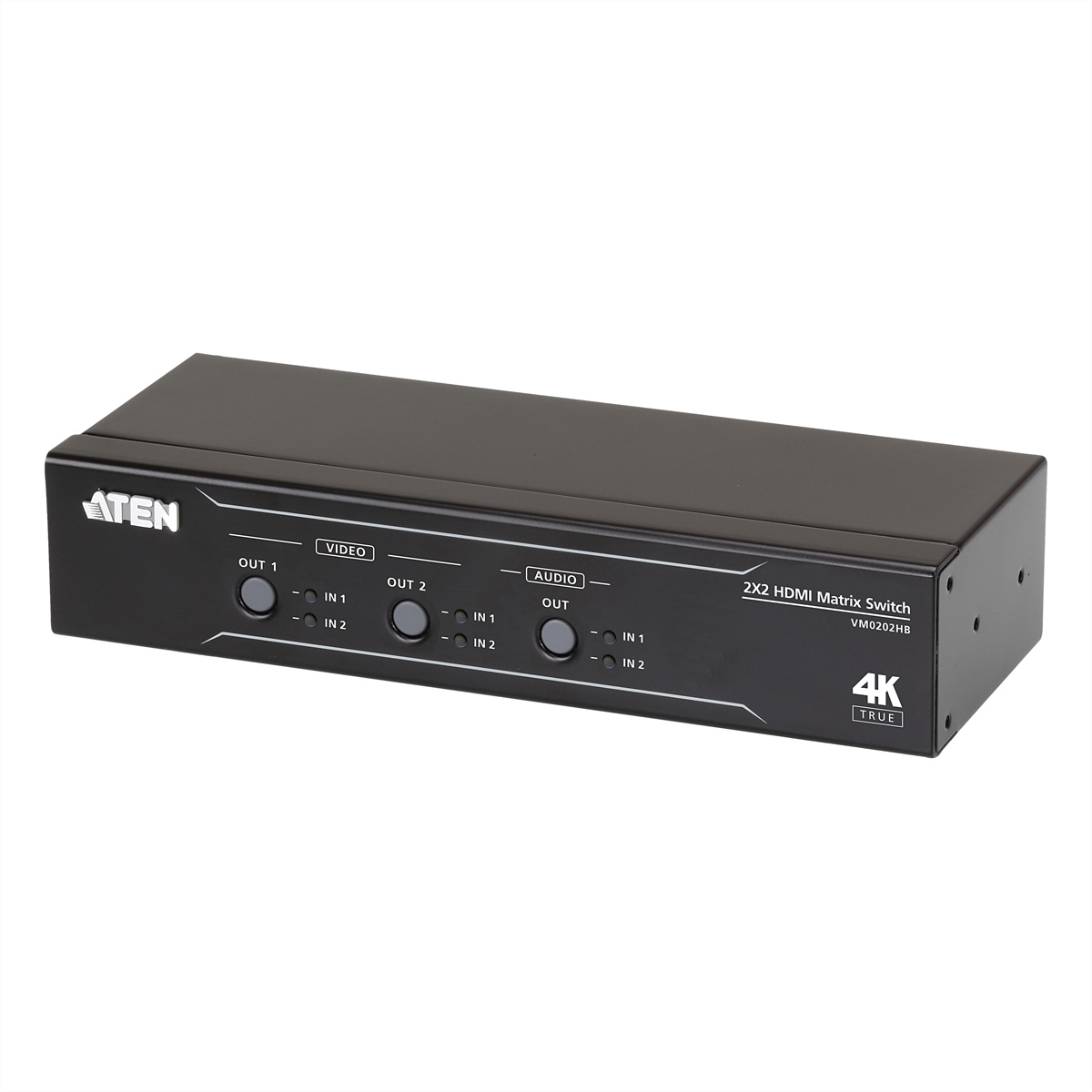

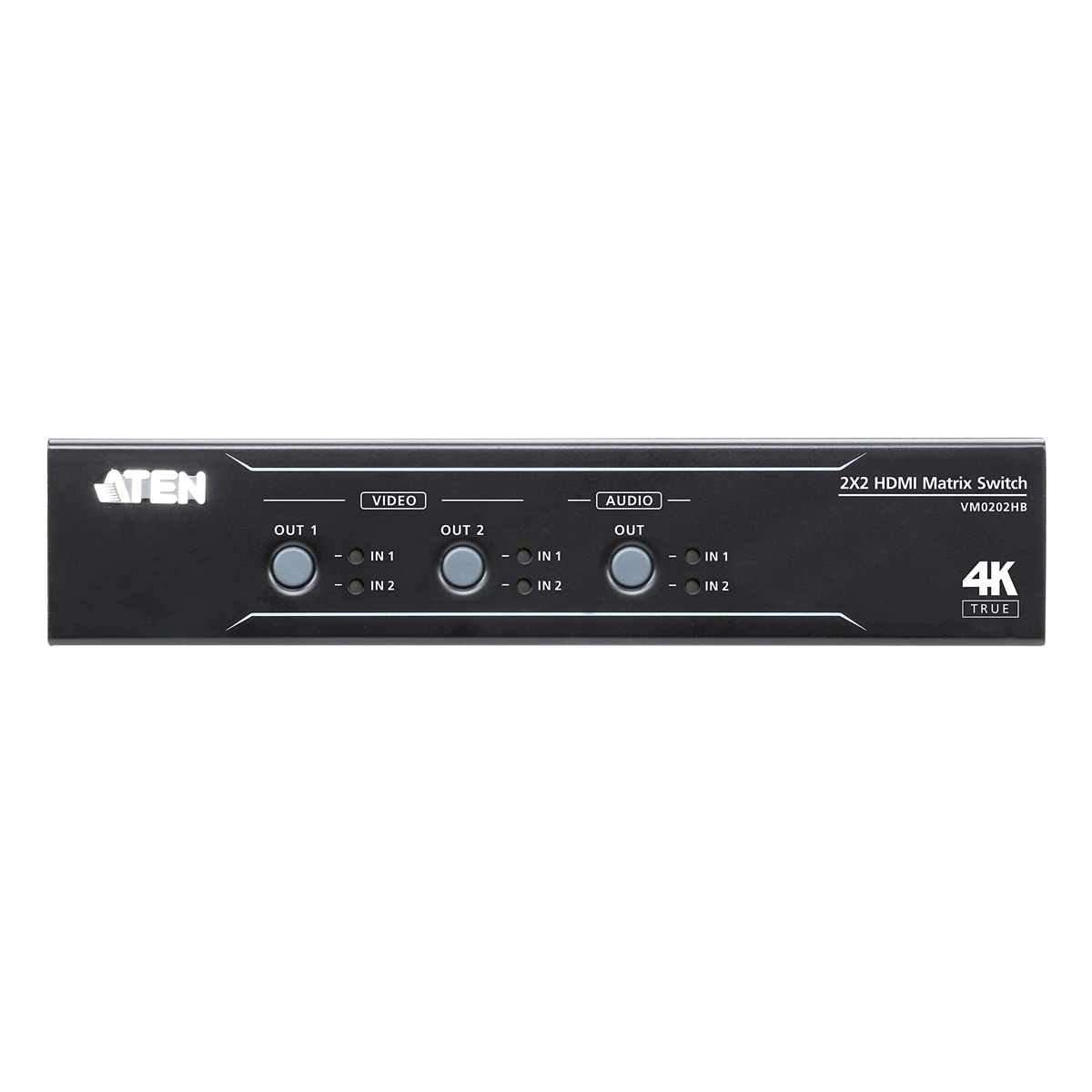

ATEN VM0202HB 2x2 True 4K HDMI Audio/Video Matrix Switch HDMI Video Matrix Switch
ATEN
Art.-Nr. 89907058
incl. VAT and free shipping above €50,-
Sold and shipped by SECOMP Electronic Components Nederland
Online in stock
Delivery 19-06-2026 - 20-06-2026
+ € 0,–

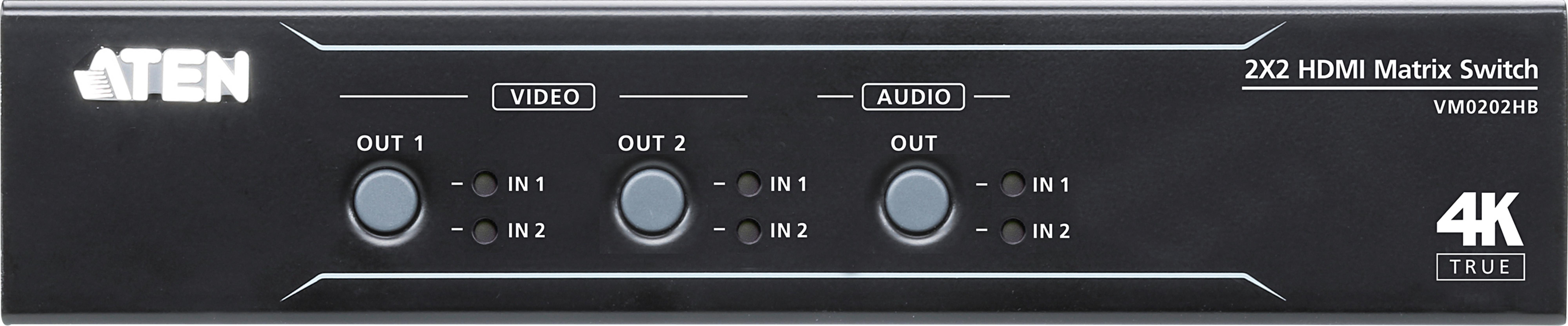

Matrix switch with audio de-embedder for managing content across two displays. HDMI audio can be extracted as stereo or lineout audio... The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch with audio de-embedding. The VM0202HB provides a simple and affordable way to route high-resolution True 4K HDMI video and audio. Supporting video resolutions up to 4096 x 2160 at 60 Hz (4:4:4), HDR, audio de-embedding and data rates up to 18 Gbps, the VM0202HB provides robust signal routing and fast digital video/audio switching that is essential for perfect fit for most AV applications.... . Offering superior video resolutions up to 4096 x 2160 at 60 Hz (4:4:4), the VM0202HB Matrix Switch also enables powerful routing of 2 HDMI video sources, such as high-resolution Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and independent streaming media players on 2 HDMI displays. In addition, the integrated audio de-embedder allows easy extraction of HDMI audio for independent analog audio output. For efficient operation and management, the VM0202HB's front panel remote control and push buttons provide a convenient way to search HDMI video and audio sources with clear LED indication of the selected source.
Features | |
|---|---|
Product type | HDMI Video Matrix Switch |
Integrated tuner | No |
Maximum transfer speed | 18 Gbit/s |
Special features | Connects up to 2 HDMI sources to up to 2 HDMI displays; Supports true 4K video resolutions; Audio De-Embedder ; Multiple control methods; Control consumer electronics (CEC) |
Color (by manufacturer) | black |
Weight (according to the manufacturer) | 0.6 kg |
Weight | 850 g |
Scope of delivery | 1x VM0202HB 2 x 2 True 4K HDMI matrix switch with audio de-embedder, 1x JCNT-3301-103G 3-pin terminal block, 1x 0AD8-1005-26M1 power supply, 1x 2XRT-0106G IR Remote Control, 1x 2XRT-0003G IR Receiver, 1x Rack Mounting Kit, 1x User Manual |
Width | 200 mm |
Height | 42 mm |
Depth | 76 mm |
| General Product Safety |
|---|
| GTIN4710469340024 |
| Product typeHDMI Video Matrix Switch |
| Manufacturer |
|---|
| ManufacturerATEN INFOTECH N.V. |
| Websitehttps://www.aten.eu |
| E-mail[email protected] |
| EU establishedYes |
| AddressMijnwerkerslaan 34 |
| CityHeusden-Zolder |
| Postcode3550 |
| CountryBelgium |
| Address suffixMijnwerkerslaan 34, 3550 Heusden-Zolder, Belgium |
