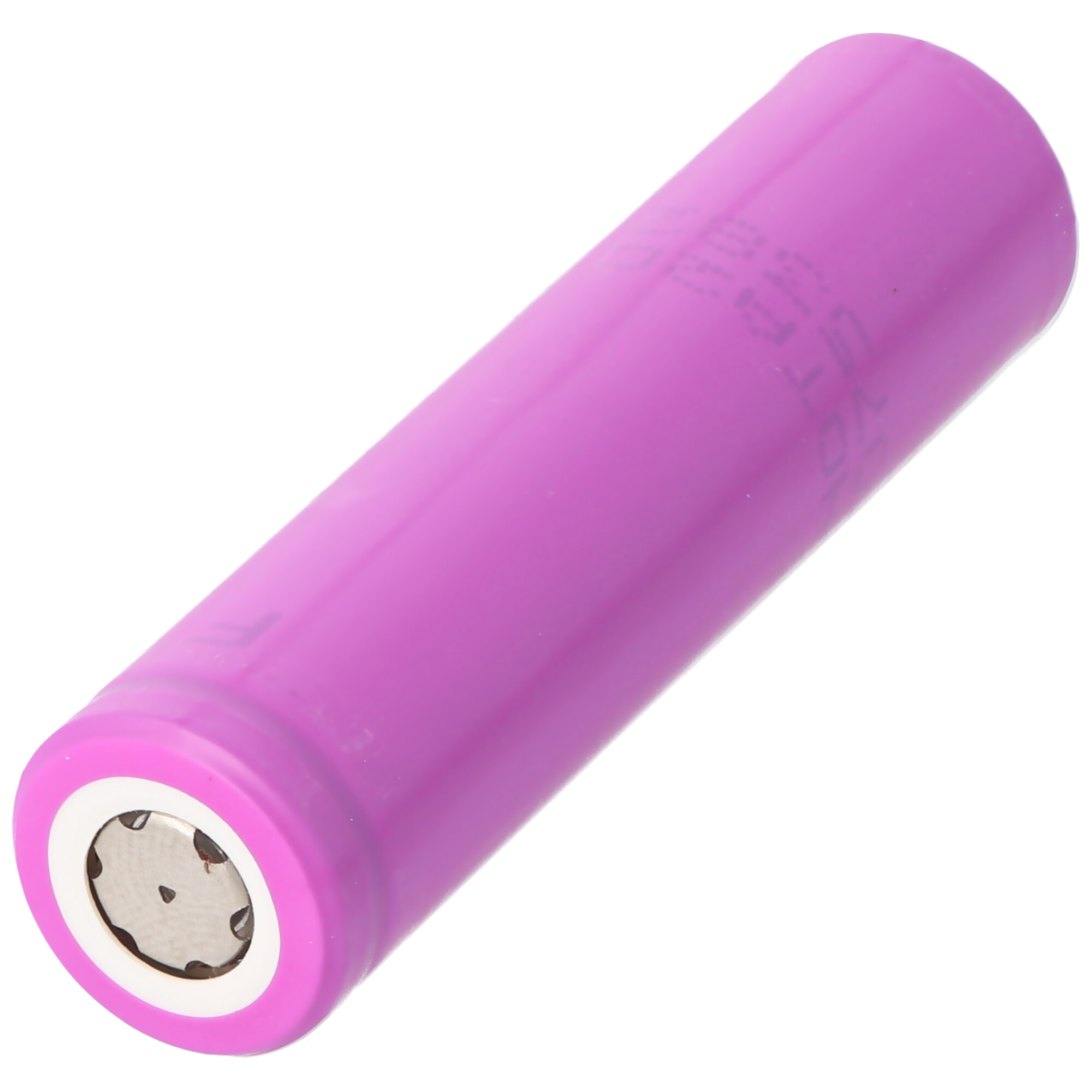

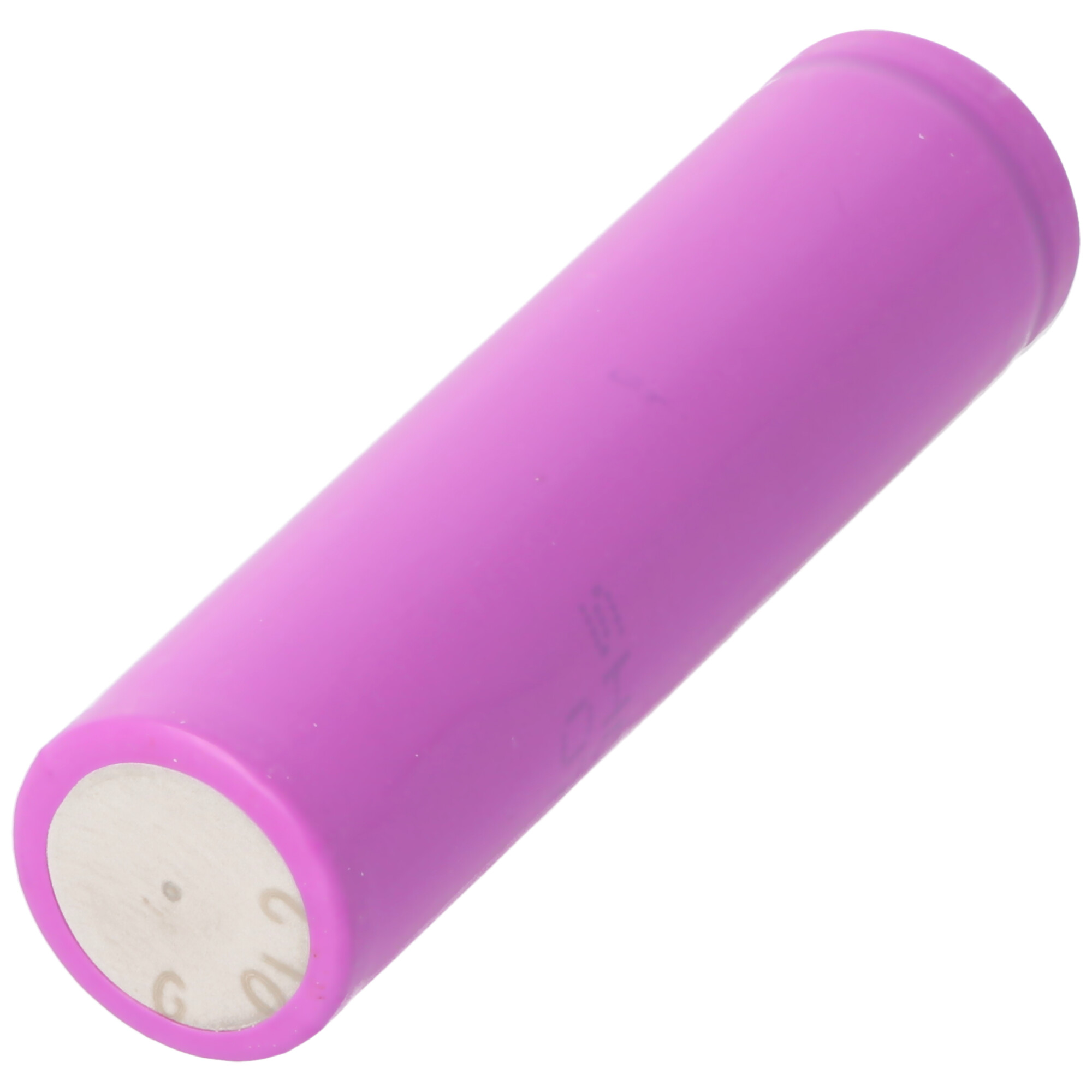

PANASONIC UR16650ZTA 2500mAh 3.6V - 3.7V Battery

A cell specifically designed for battery mods.

Sanyo UR16650ZTA Li-ion battery positive pole flat Capacity (mAh) 2500 mAh Rated voltage (volts) 3.7 V. Final voltage (volts) 4.35V Discharge current (amperes) 2C - 5A Final discharge voltage (volts) 2.7V Charging current (amperes) 1750 mAh Positive pole (structure) flat top protection No Composition (chemistry) LiCo (ICR) Diameter (mm) 16.40 mm ± 0.15 mm Height (mm) 65.0 mm ± 0.15 mm Weight (g) 39 g ± 1 g Charging method CC CV Safety instructions:

Lithium cells should only be used with protective electronics!
Please note that lithium cells must only be used by competent persons.
Incorrect handling or short circuits can lead to fire or explosion.

Other options:

Lithium-ion batteries are thermally stable and have no memory effect.
They work on the basis of lithium and are characterized by high energy density.

Technical data for Sanyo UR16650ZTA 2500mAh 3.6V - 3.7V Li-Ion battery positive pole flat

Tips:

Charging lithium-ion batteries requires a special charger that charges the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a danger of fire and explosion. It is advantageous to charge the batteries only to about 4.1 volts, as this significantly increases the service life or number of charging cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.

Furthermore, batteries and accumulators do not belong in the household waste! Dispose of them as required by law at municipal collection points or in the designated [mostly green] retail containers.
