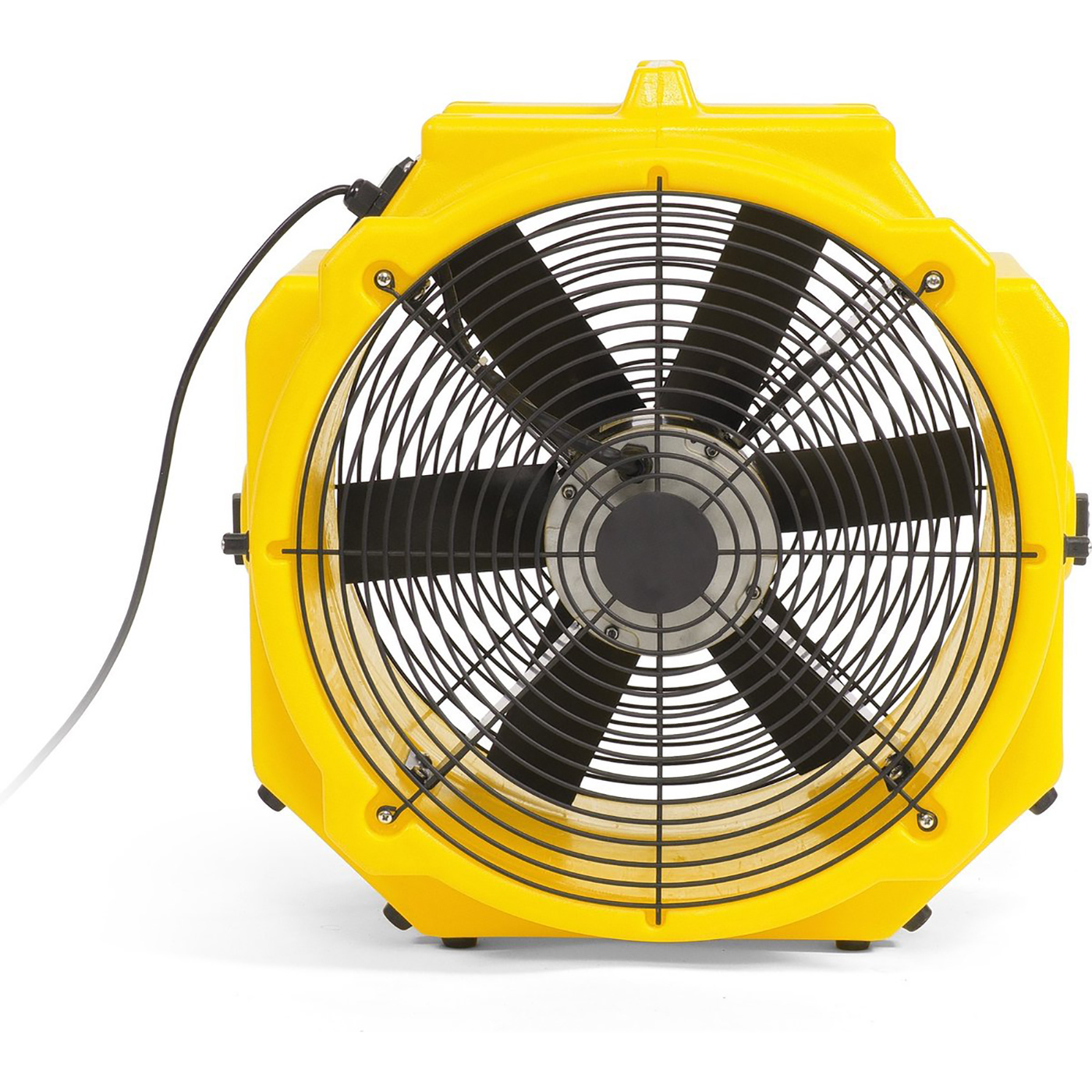

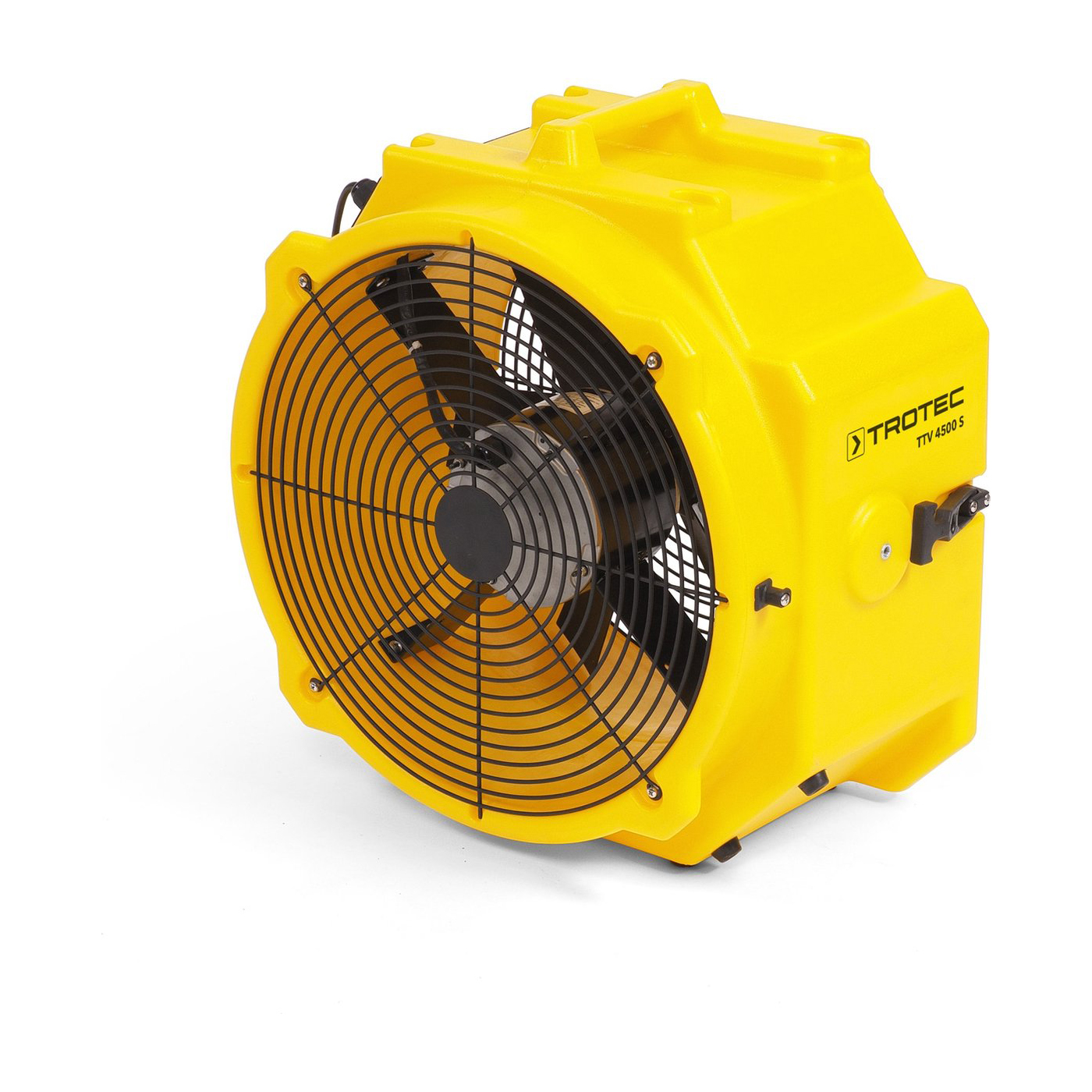

TROTEC TTV 4500 S Axial fan Yellow

This Trotec TTV 4500 S axial fan is the perfect fan for moving large quantities of air, also known as a space fan. Ideal for targeted ventilation, and with an optional tilting frame it is even suitable for a higher wall or ceiling.

Applications of the Trotec TTV 4500 S

Thanks to innovative developments, it is possible to connect multiple TTV 4500 S axial fans to each other via locking levers and fixing pins. This gives you a higher air pressure or greater air displacement, without sacrificing stability or performance. Furthermore, thanks to the integrated hose connection, you can easily combine the fan with air hoses, for example for dust extraction or targeted ventilation.

Advantages of the Trotec TTV 4500 S

This powerful, compact fan has a sturdy, robust housing of industrial quality. Moving the fan is quick and easy thanks to the integrated handle. Furthermore, the fan is always stable on any surface thanks to the rubber feet. Furthermore, the TTV 4500 S is equipped with a service socket and an operating hours counter, so you can keep track of everything. And what makes this axial fan truly unique: is that you can connect multiple fans together for a higher air circulation capacity.

Technical specifications:

• Fan speeds: 2 positions
• Air flow: blowing and suction
• Air speed: 11 m/s
• Air quantity: 5000 m³/h
• Power connection: 230V
• Cable length: 4 meters
• IP protection class: IP44
• Dimensions (LxWxH): 330 x 530 x 560 mm
