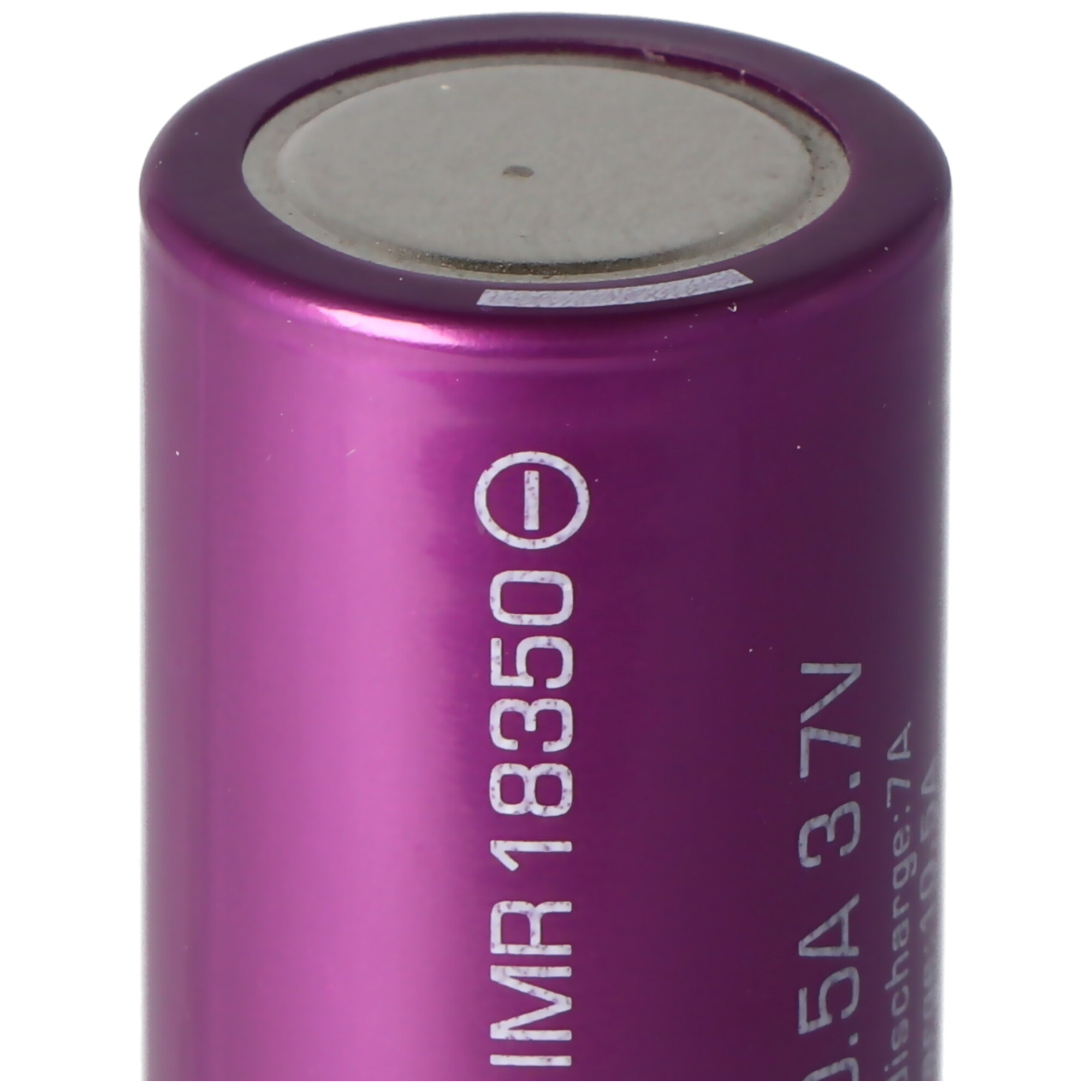

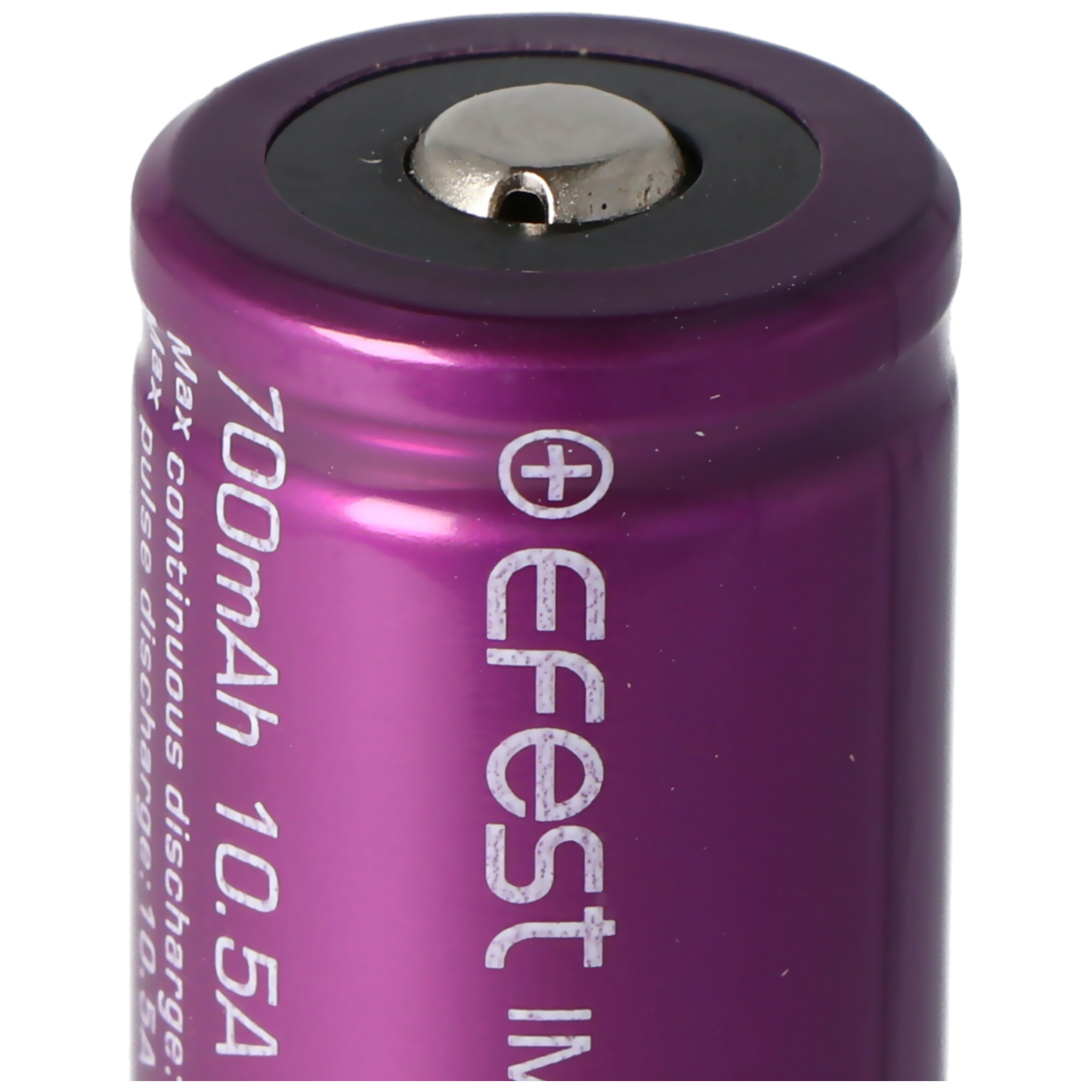

EFEST Purple IMR18350 - 700 mAh 3,7 V Battery

A high-quality cell made from a safe chemical composition (lithium-manganese) developed by Efest. Manganese does not react with lithium, so these cells have high intrinsic safety. Specially developed for battery cases and flashlights.

Efest Purple IMR18350 lithium-ion battery (positive pole up, unprotected) capacity 700mAh Min. Capacity 670mAh nominal voltage 3.7V charge voltage 4.2V ± 0.05V discharge voltage 3.0V Max. Discharge current 10.5A (15C) Charge current Max. 0.7A (1C) positive pole raised (button on top) protection not available Chemical composition LiMn (IMR) diameter 18.10 mm ± 0.1 mm height 35.20 mm ± 0.1 mm weight 28 g ± 1 g charge method CC-CV test results Lygte Info manufacturer coupling Efest safety:

Lithium cells may only be used with protective electronics!
Please note that lithium cells should only be used by authorized persons.
Improper handling or short circuits may result in fire or explosion.

Other features:

Lithium-ion batteries are thermally stable and have no memory effect.
They are lithium-based and are characterized by a high energy density.

Technical data for "Efest Purple IMR18350 - 700 mAh 3.7 V Li-ion battery (positive pole raised)"

Normal charging current 700mA / 3h Operating temperature charging 0 ° C - 45 ° C Operating temperature discharge -20 ° C - 60 ° C

Notes:

A special charger is required to charge lithium-ion batteries, which charge the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge batteries only to about 4.1 volts, as this significantly increases the life or number of charge cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but instead continue to charge the batteries with a small charging current, which can be dangerous.

In addition, rechargeable batteries and batteries do not belong in household waste! According to the law, dispose of them in the municipal collection points or in the designated [usually green] containers of the trade.
