POWER DYNAMICS PD504H wireless microphone set Black

The Power Dynamics PD504H is a wireless microphone set with no less than 4 handheld microphones. The set is suitable for both vocals and speech and can therefore be used widely and universally. The system features no less than 50 channels, guaranteeing interference-free transmission. On the receiver, each microphone has its own color coding so there is no confusion about which buttons belong to which microphone.

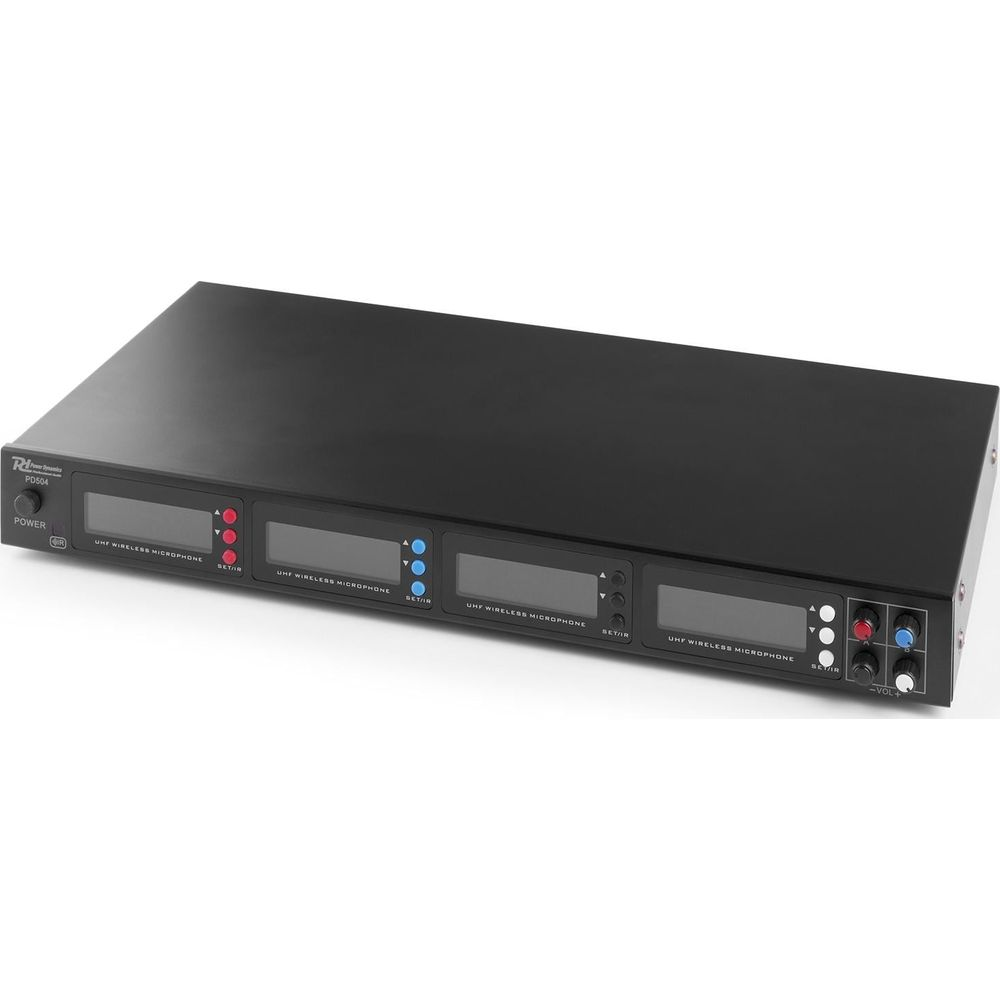

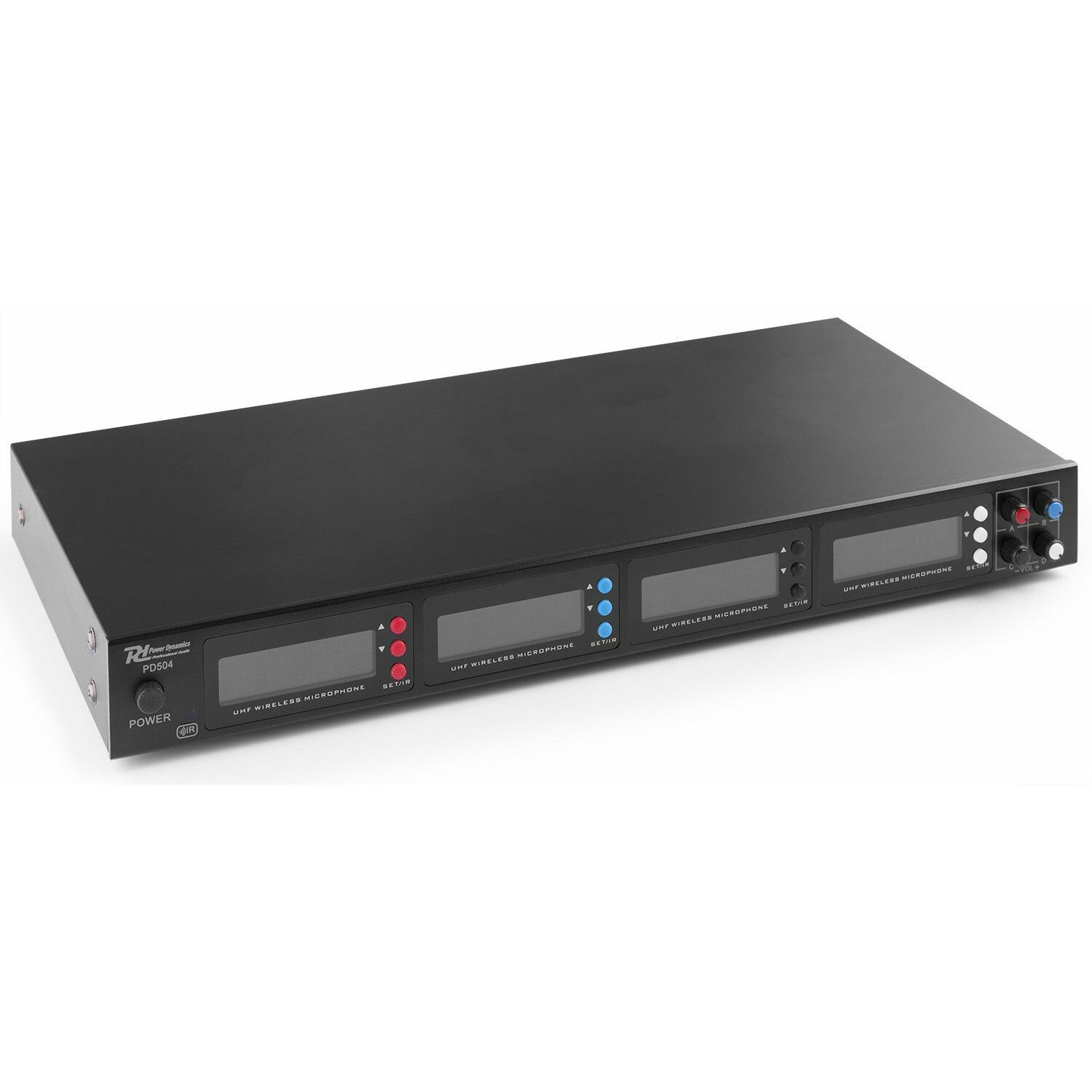

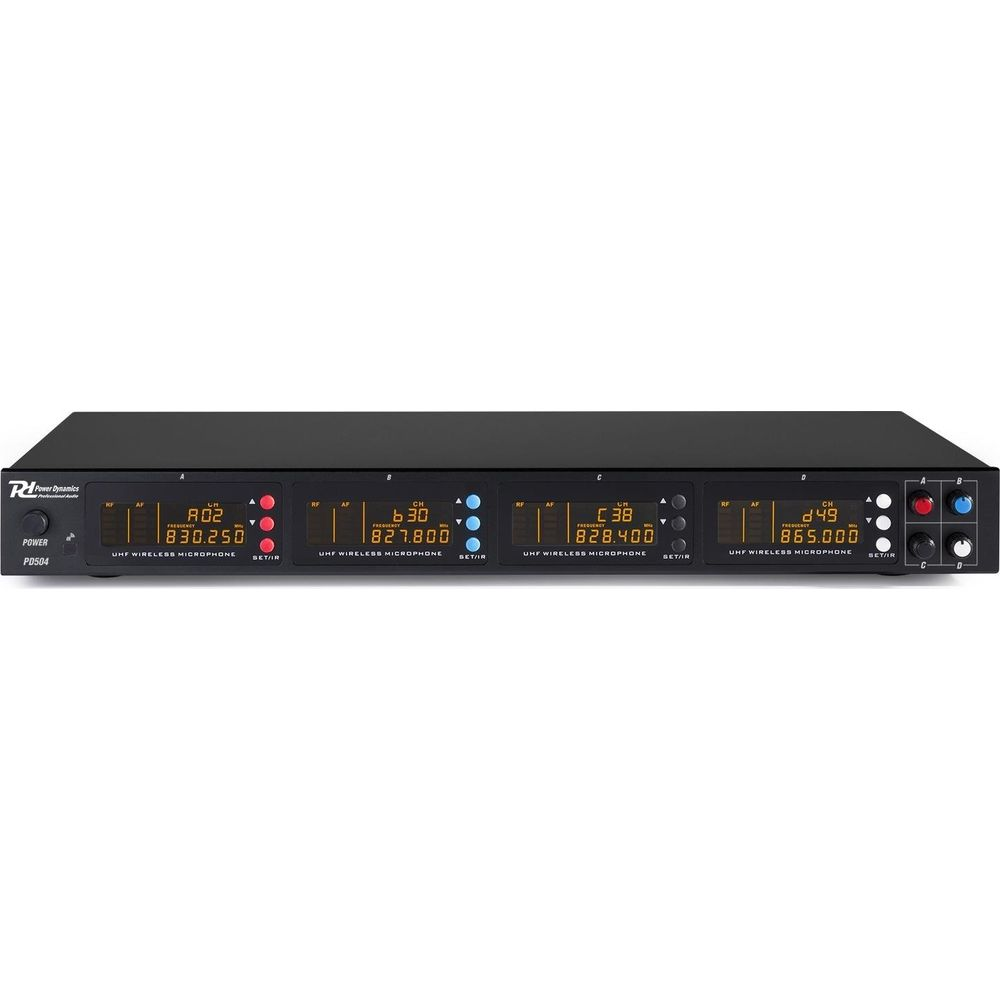

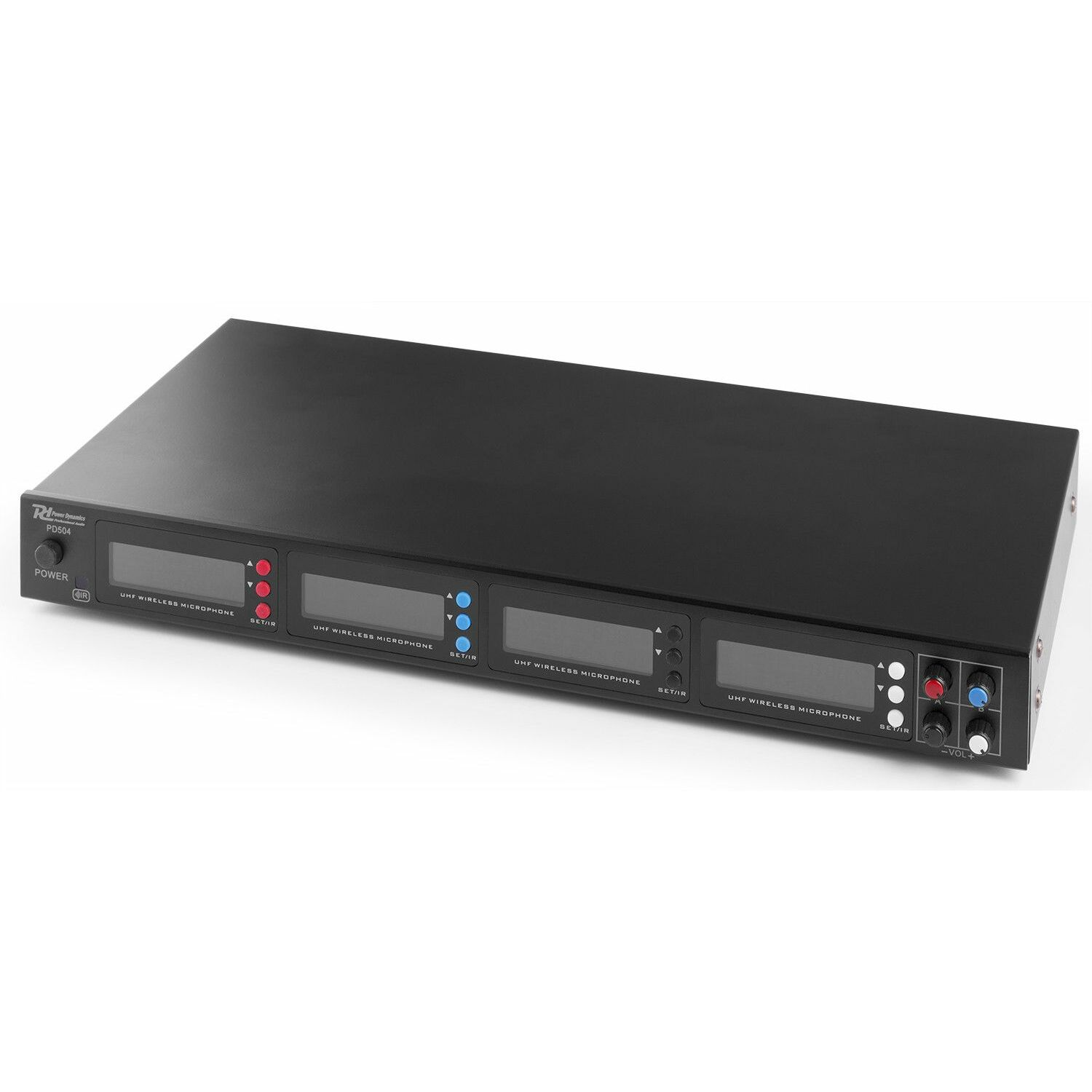

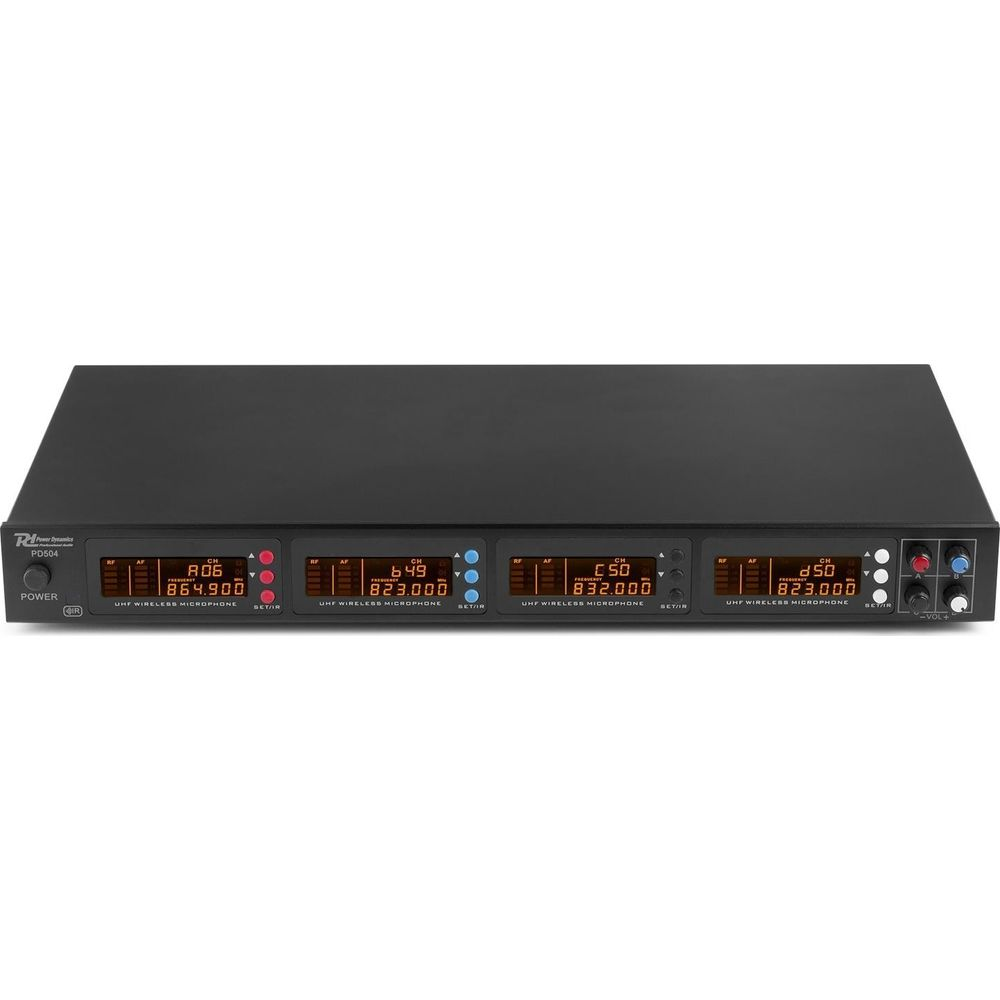

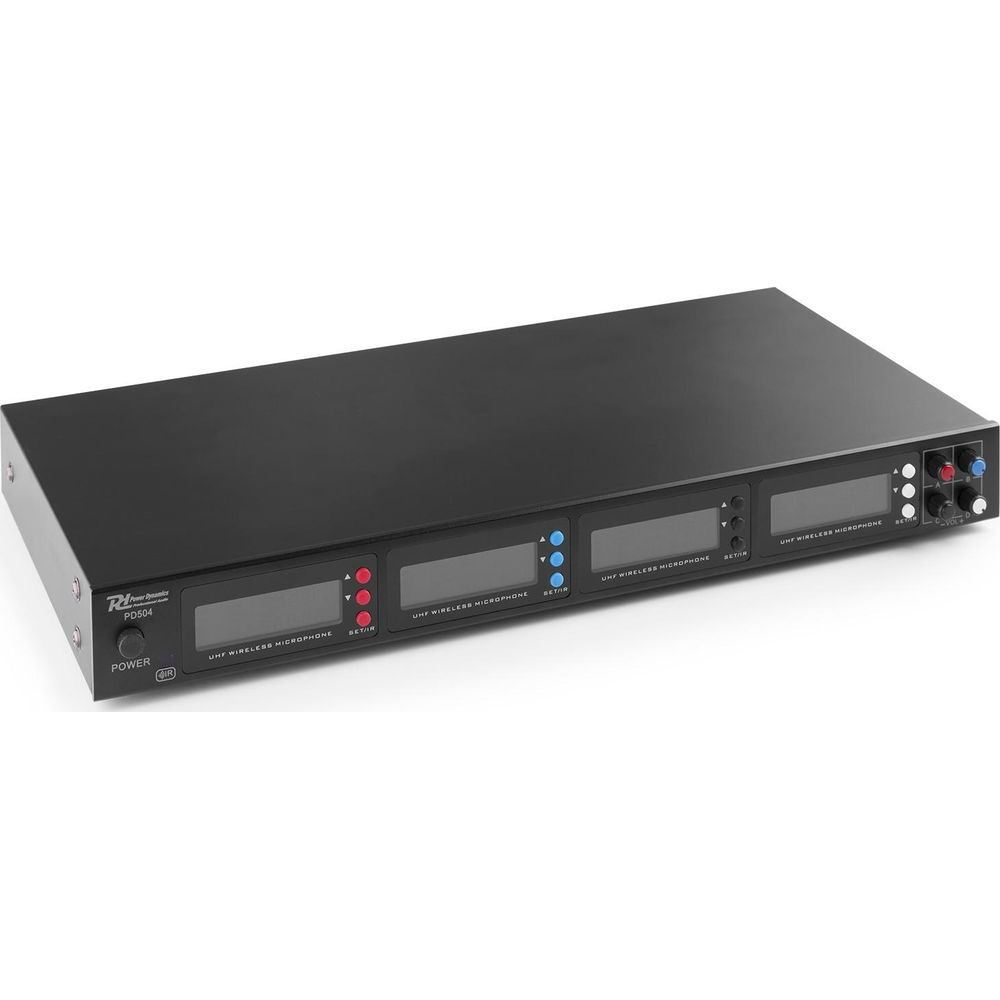

The receiver of the PD504H has 4 displays that clearly indicate the frequency on which the microphones are operating. On the back of the receiver, you can choose between 4 separate outputs or a 'mix' output. A 6.3mm jack-to-jack cable is included for the 'mix' output.
The 4 separate outputs make it possible to send the signal from each microphone separately to, for example, a mixer, where it can be processed individually with effects. The 'mix' output is particularly useful for sound systems that do not have enough microphone inputs. With the 'mix' output, the entire system can be connected to just one microphone input.

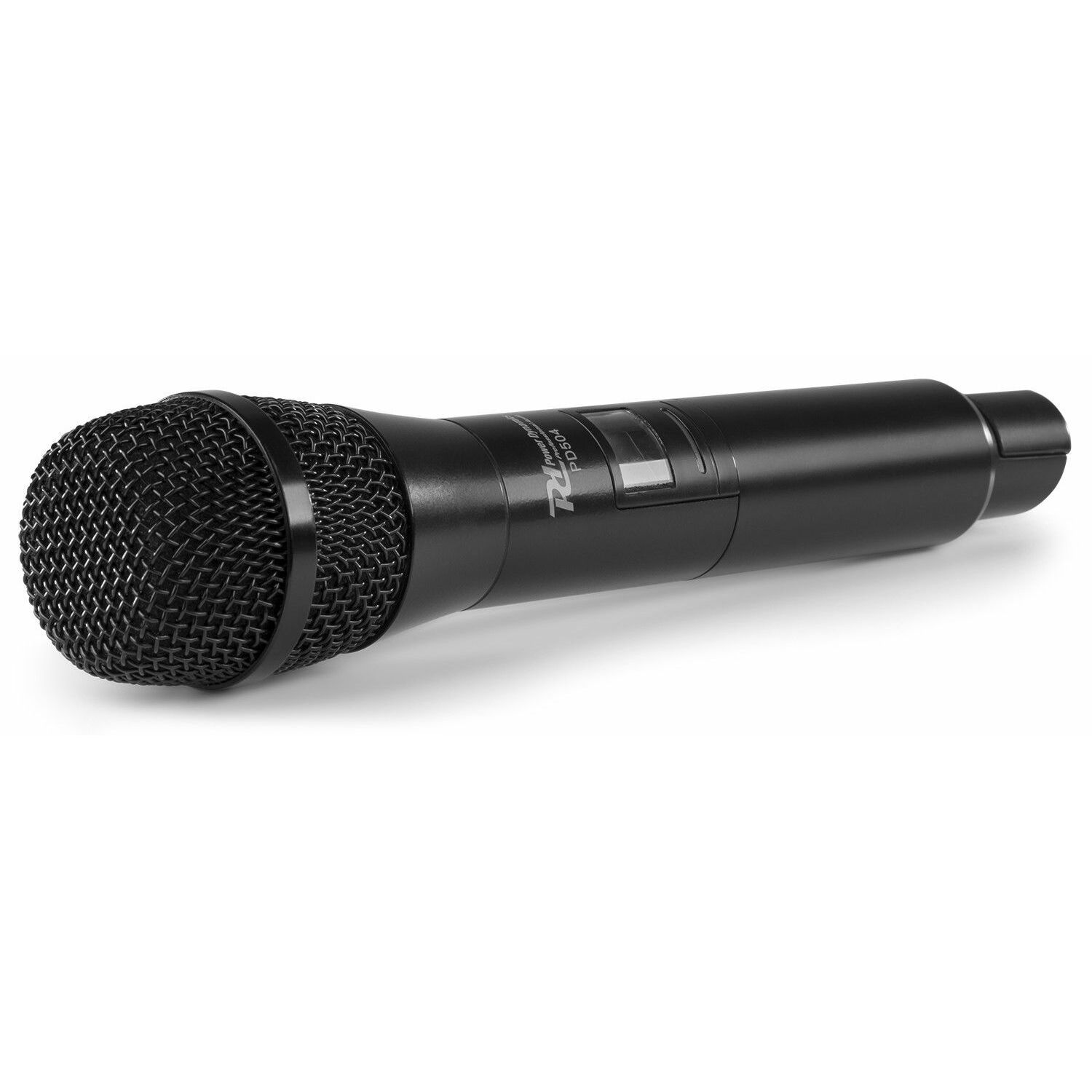

The microphones of the PD504H are all equipped with a display that shows, among other things, the battery status. An unexpectedly empty battery during a performance, for example, is a thing of the past. The microphones are robustly built and fit perfectly in the hand. Despite their high build quality, the microphones weigh only 400g. The 'mute' function allows the user to temporarily turn off the sound of the respective microphone without losing the connection to the receiver.

The PD504H microphone set operates in the UHF band. It is important to know that the UHF band is much less susceptible to interference than the VHF band (which is often cheaper). Another advantage is that this wireless UHF microphone set can be used in both the Netherlands and Belgium without a license.

Features

- Four handheld microphones with mute function
- Total of 50 selectable UHF channels
- Infrared data transmission for channel selection
- Four balanced XLR outputs
- CPU controlled
- PLL oscillator
- Microphones with display for frequency and battery indication
- Receiver with dynamic LCD display

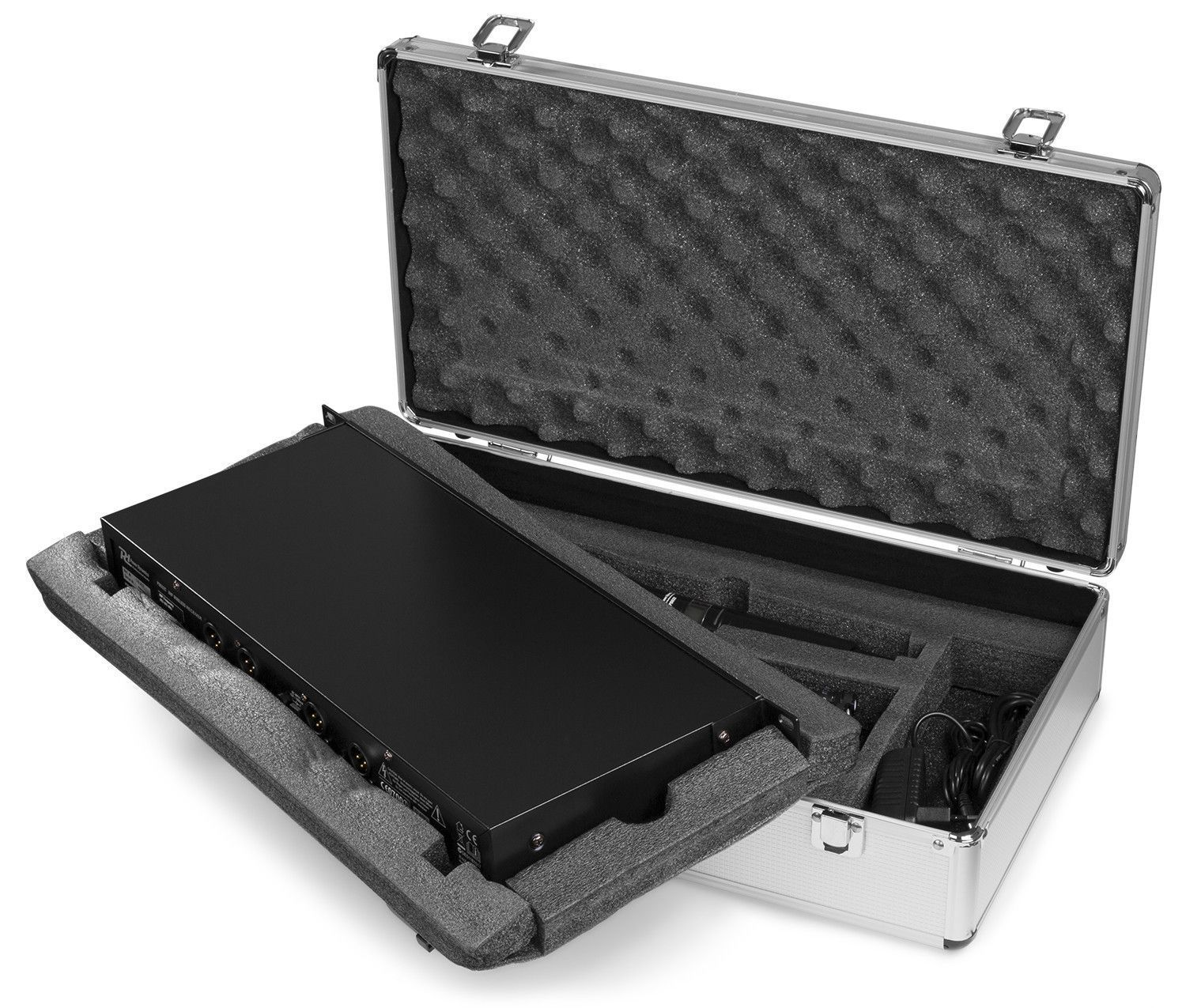

- Supplied in an aluminum flight case
- Delivery includes 6.3mm jack cable
- Frequency: 826.000 - 831.200 / 863.000 - 865.000
- RF output: - Frequency range: 60Hz - 18kHz
- Frequency stability: - THD: - Signal to noise ratio: >97dB
- Battery: 2x AA (penlite) per microphone
- Receiver power supply: 230Vac/50Hz
- Dimensions:
* Receiver: 235 x 420 x 44mm
* Per microphone: 250 x ø51mm
- Weight:
* Receiver: 1700gr
* Per microphone: 400gr
