POWER DYNAMICS PD504B wireless microphone set Black

Four people, eight free hands with the Power Dynamics PD504B wireless headset microphone system

Complete freedom and also free hands. With the Power Dynamics PD504B digital wireless microphone system, up to four people can use a wireless microphone simultaneously. The set comes with a receiver, four bodypacks, four headsets & four lavalier microphones. Due to the high build quality and the digital transmission of the signal, this set guarantees interference-free use with an extremely high sound quality. The PD504B is suitable for both singing and speech for professional use.

Bodypacks

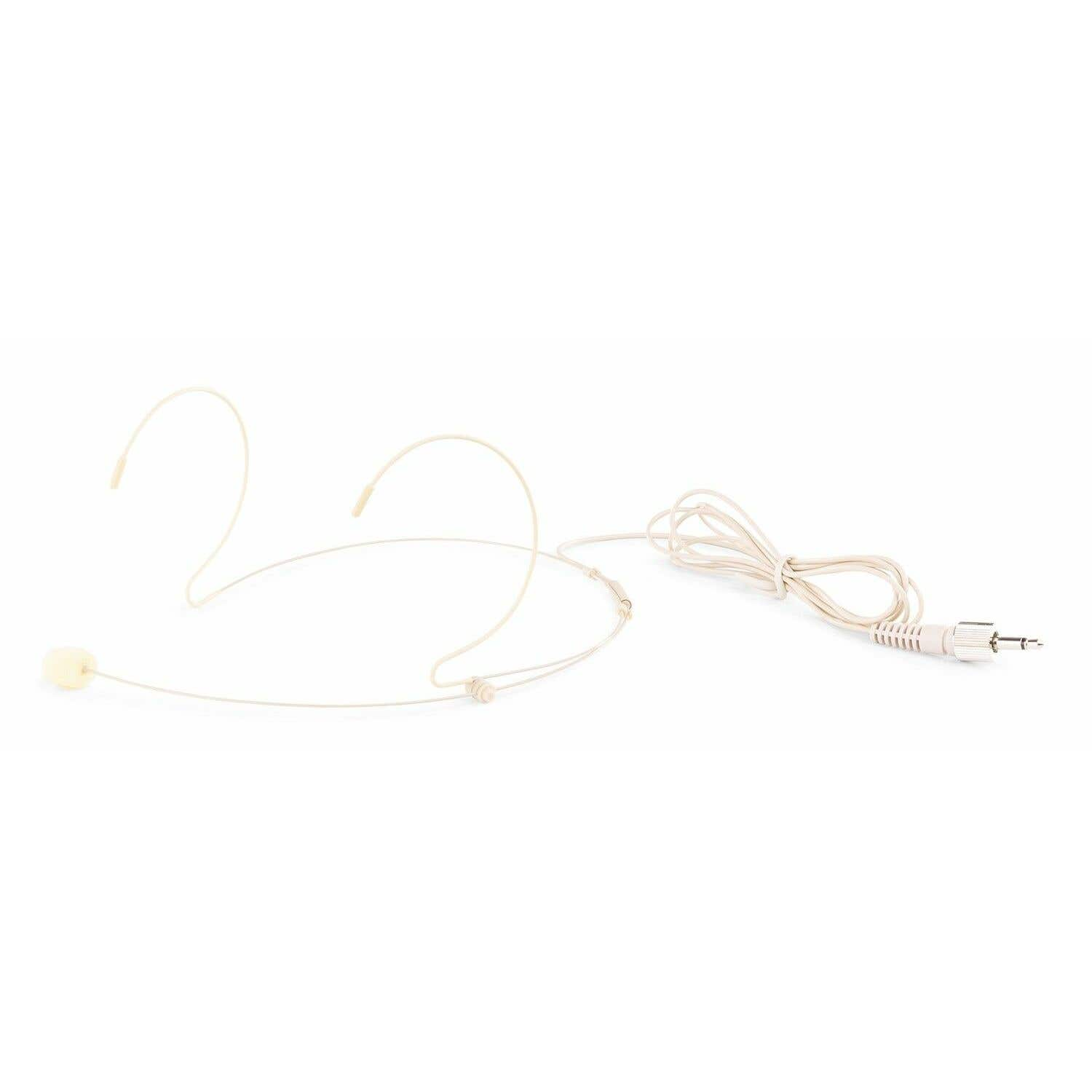

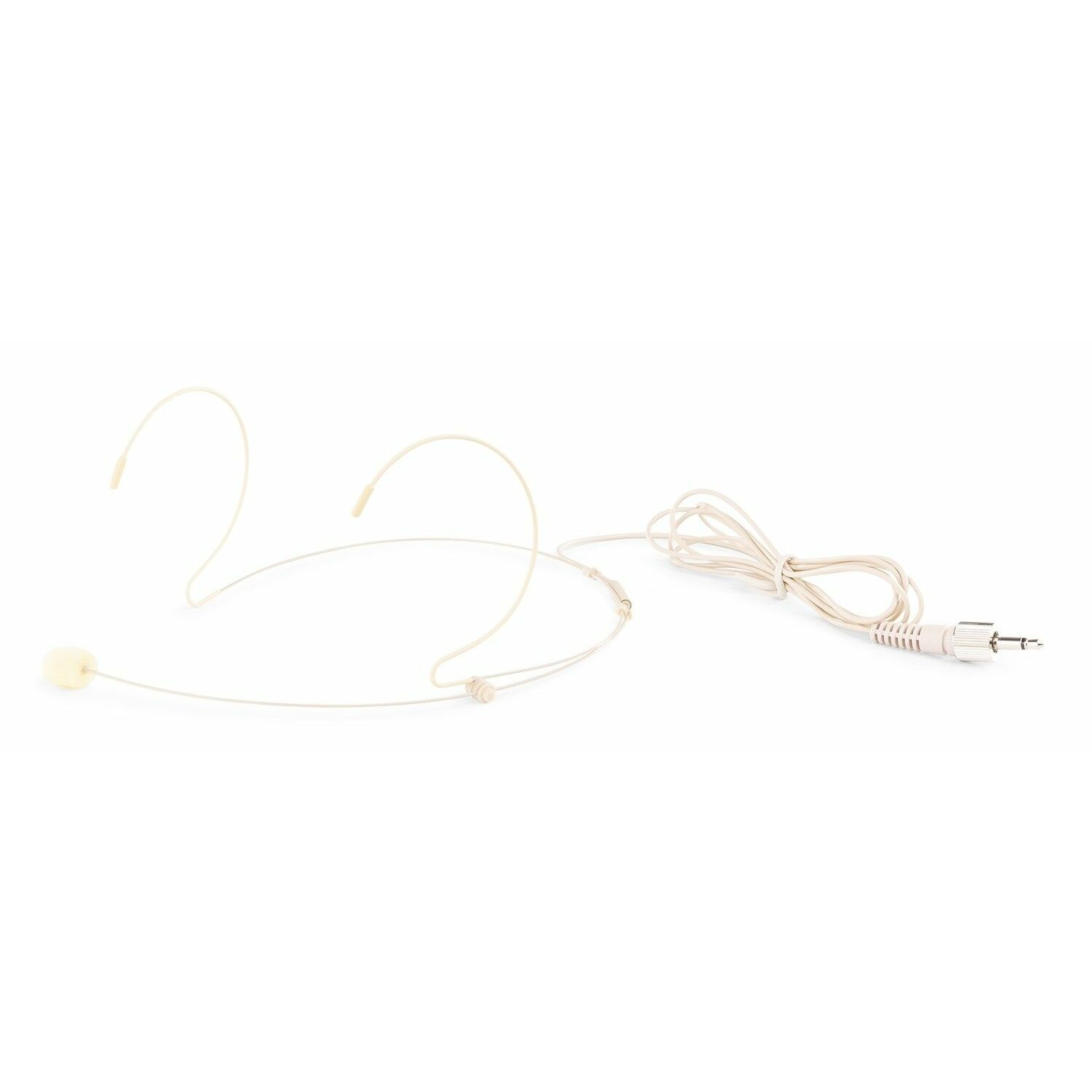

The PD504B features four bodypacks. These bodypacks can easily be attached to, for example, trousers or a belt so they don't get in the way. Depending on your preference, one of the included headset microphones or one of the lavalier microphones can be connected to the bodypacks. The bodypacks run on 2 AA batteries (penlites), and the battery status can be monitored on the display. The selected frequency is also visible on the display. The transmitters are equipped with a mute function, which means the connection with the receiver is not lost, but the microphone does not transmit sound. The sound picked up by the microphone is digitized in the bodypack and digitally transmitted to the receiver. This digital transmission ensures an extremely stable transmission with excellent sound quality. The range of the PD504B bodypacks is approximately 25 - 30 meters with "clear line of sight".

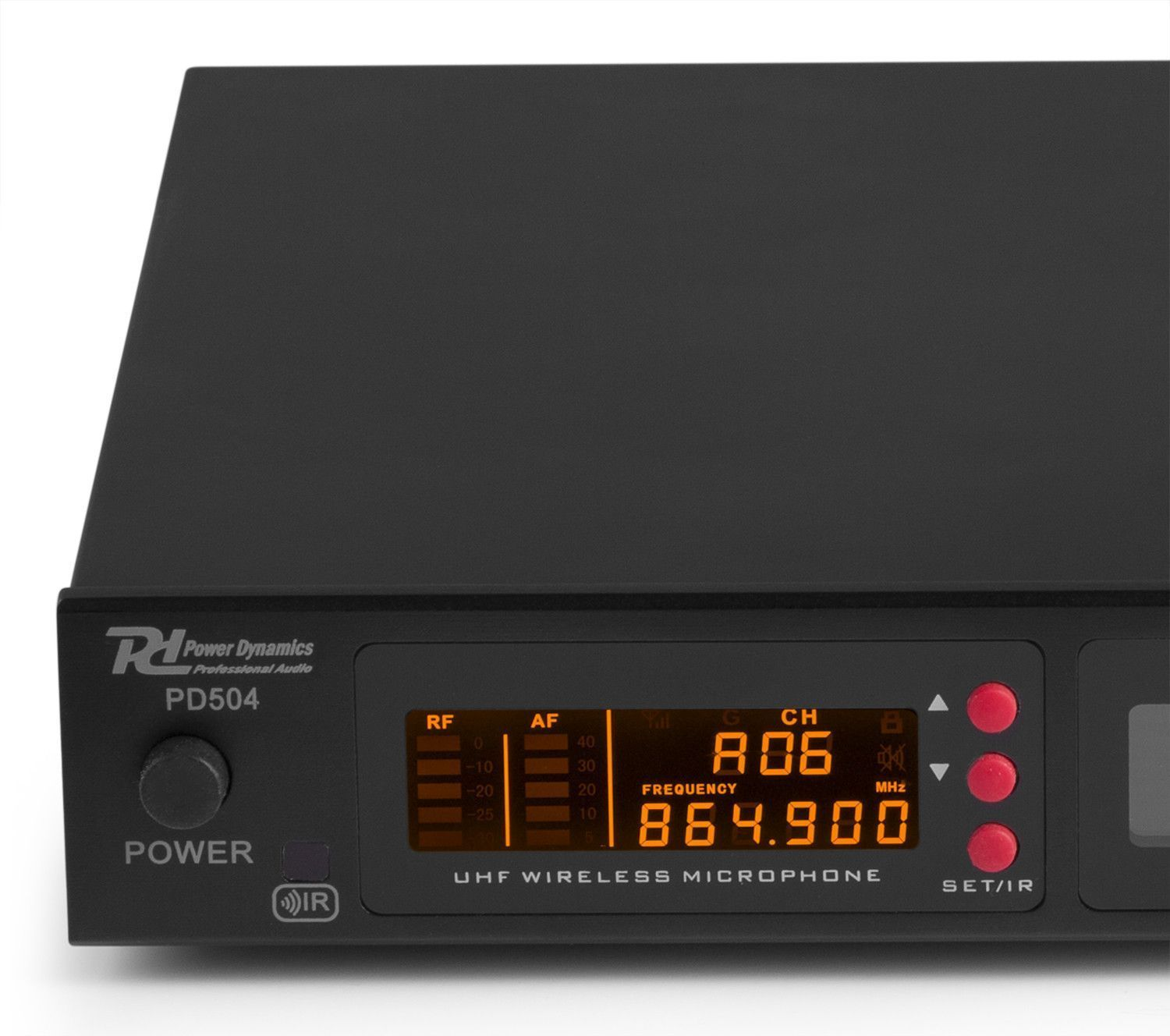

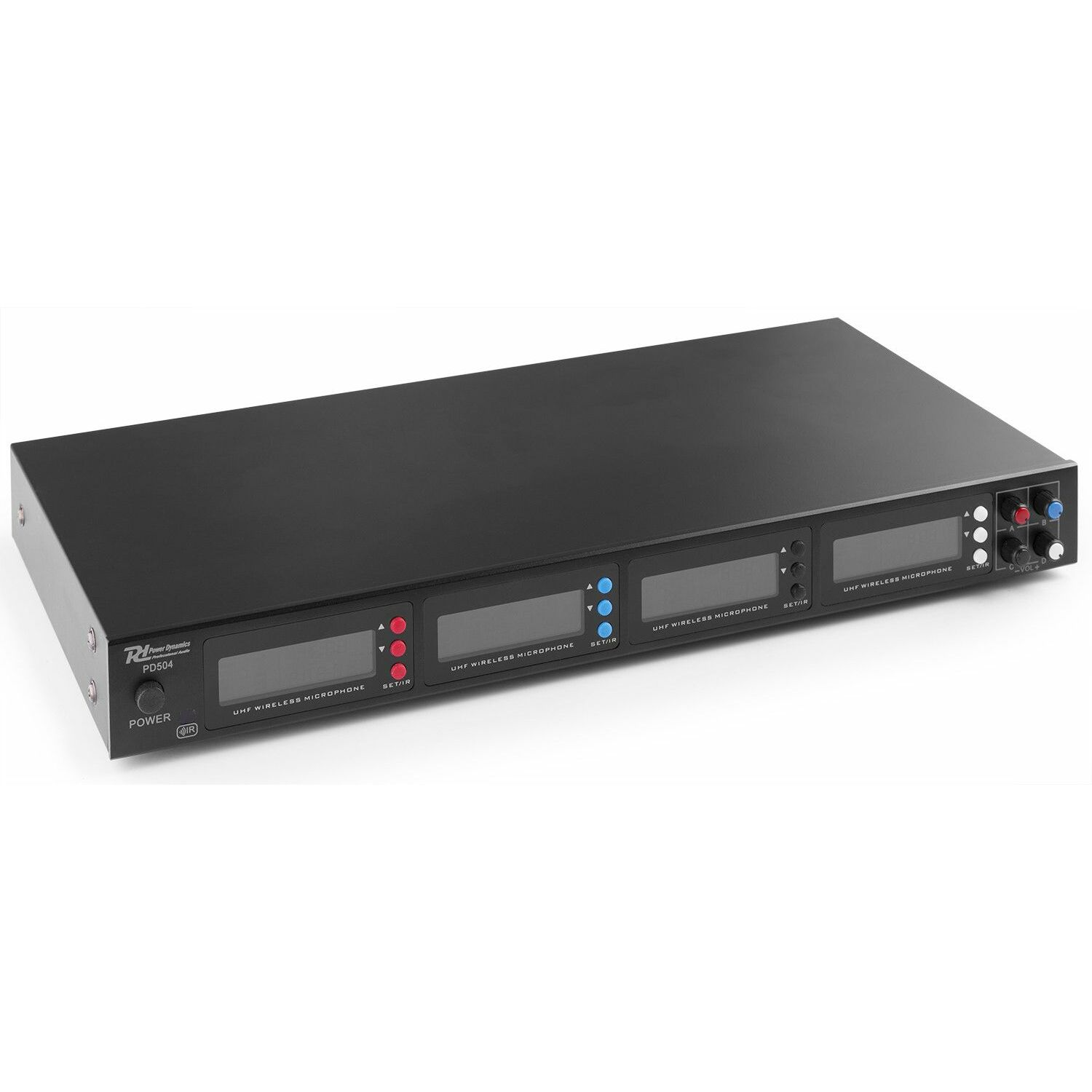

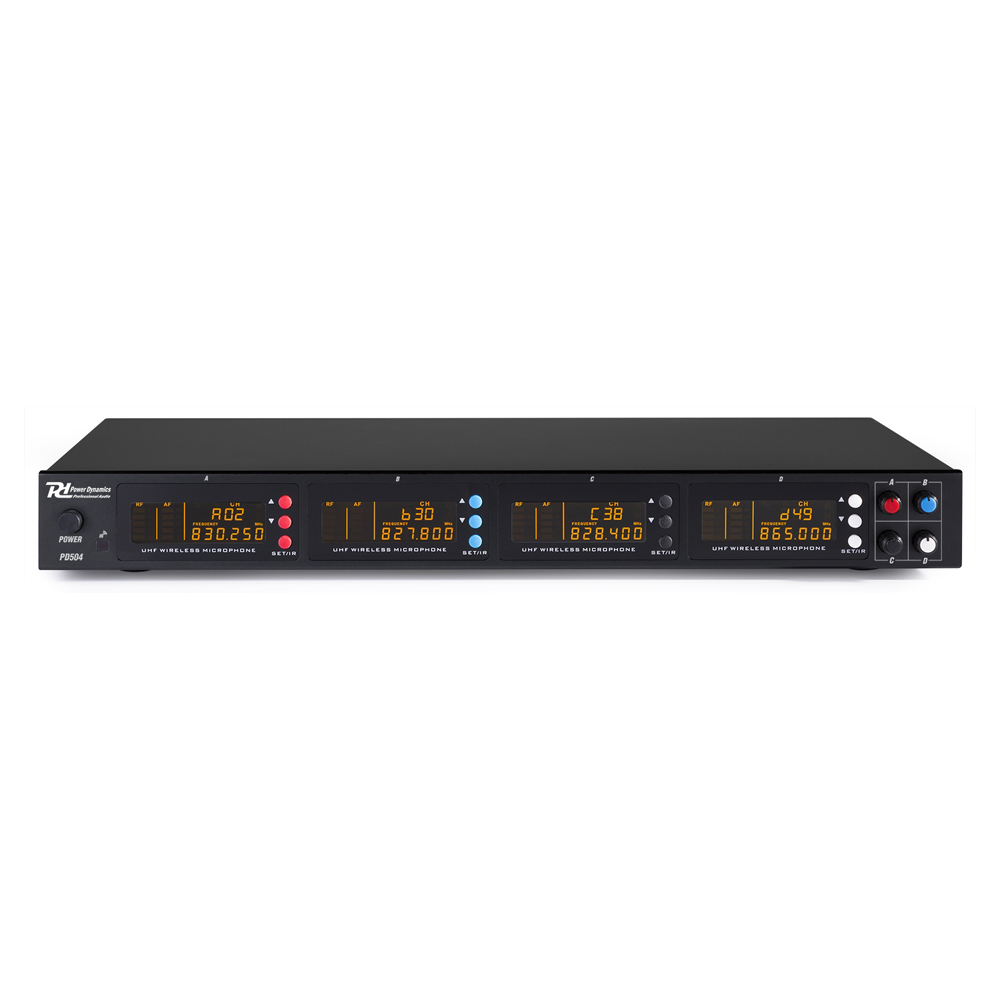

Receiver

The receiver of the PD504B is equipped with four displays showing, among other things, the selected frequency. An easy infrared data transmission system is available for matching the frequency between the receiver and transmitter/bodypack, so switching to another frequency can be done quickly and easily. The receiver has colored buttons to easily distinguish the settings of the four microphones. The volume of the microphones can be adjusted separately on the receiver. For connecting the receiver to a mixing console, four balanced XLR connections are available. Using the 6.3mm jack MIX output, the receiver can be connected to a single microphone input.

Features

• Four bodypacks with mute function
• Total of 50 selectable UHF channels
• Digital signal transmission
• Infrared data transmission for channel selection
• Range: 25 - 30 meters with clear line of sight
• Four balanced XLR outputs + 6.3mm jack mix output
• Includes 6.3mm jack cable
• CPU controlled
• PLL oscillator
• Bodypacks with display for frequency and battery indication
• Receiver with dynamic LCD display and separate 19" brackets

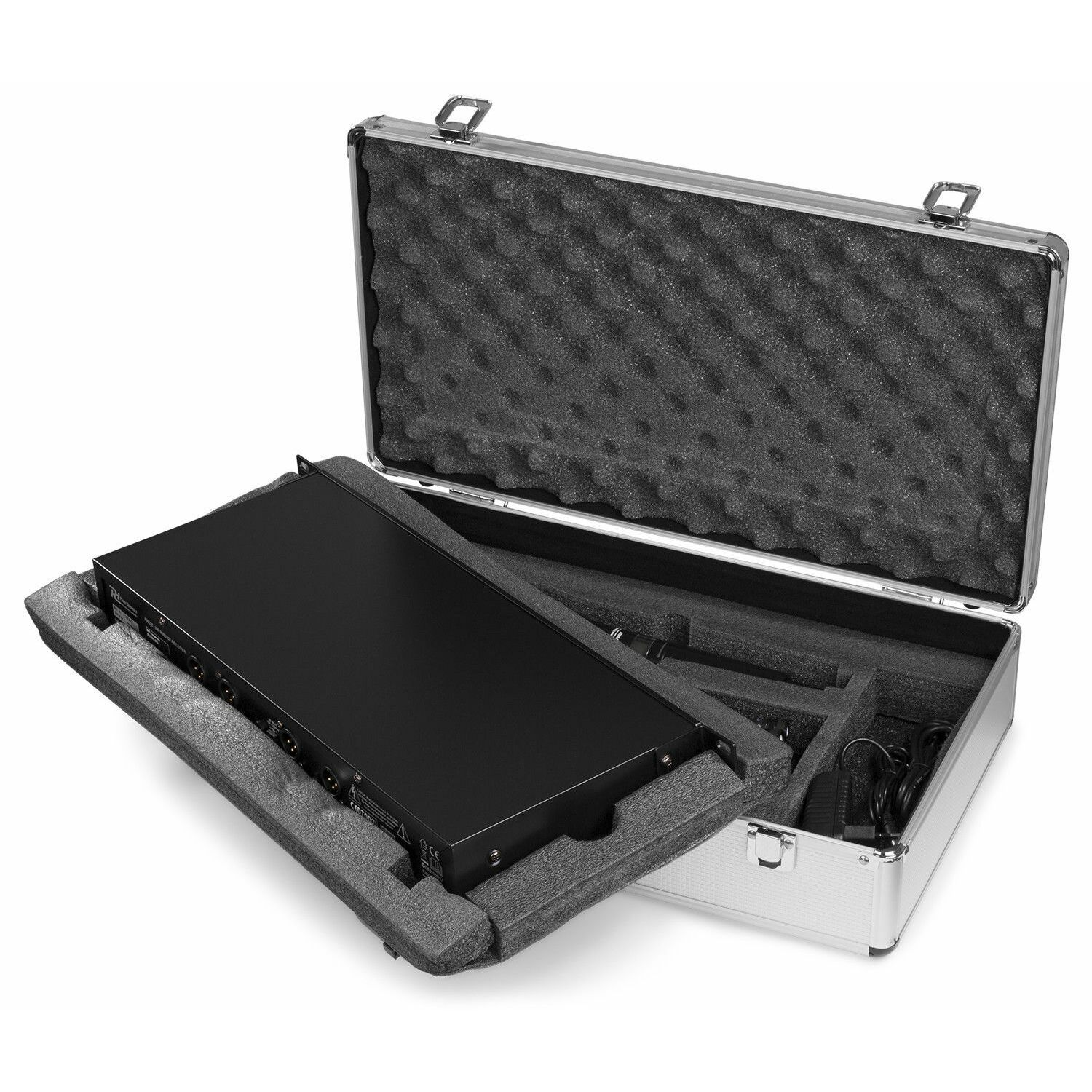

• Supplied in an aluminum flight case

Specifications

• Frequency: 826.000 - 831.200 / 863.000 - 865.000
• RF output: <10mW
• Frequency range: 60Hz - 18kHz
• Frequency stability: <15ppm
• THD: <1%
• Signal to noise ratio: >97dB
• Battery: 2x AA (penlite) per bodypack
• Power supply receiver: 230Vac/50Hz

Dimensions and weight

• Dimensions:
  • Receiver: 235 x 420 x 44mm
  • Per bodypack: 75 x 60 x 23mm
• Weight:
  • Receiver: 1700gr
  • Per microphone: 200gr
