PANASONIC

Art.-Nr. 108243695

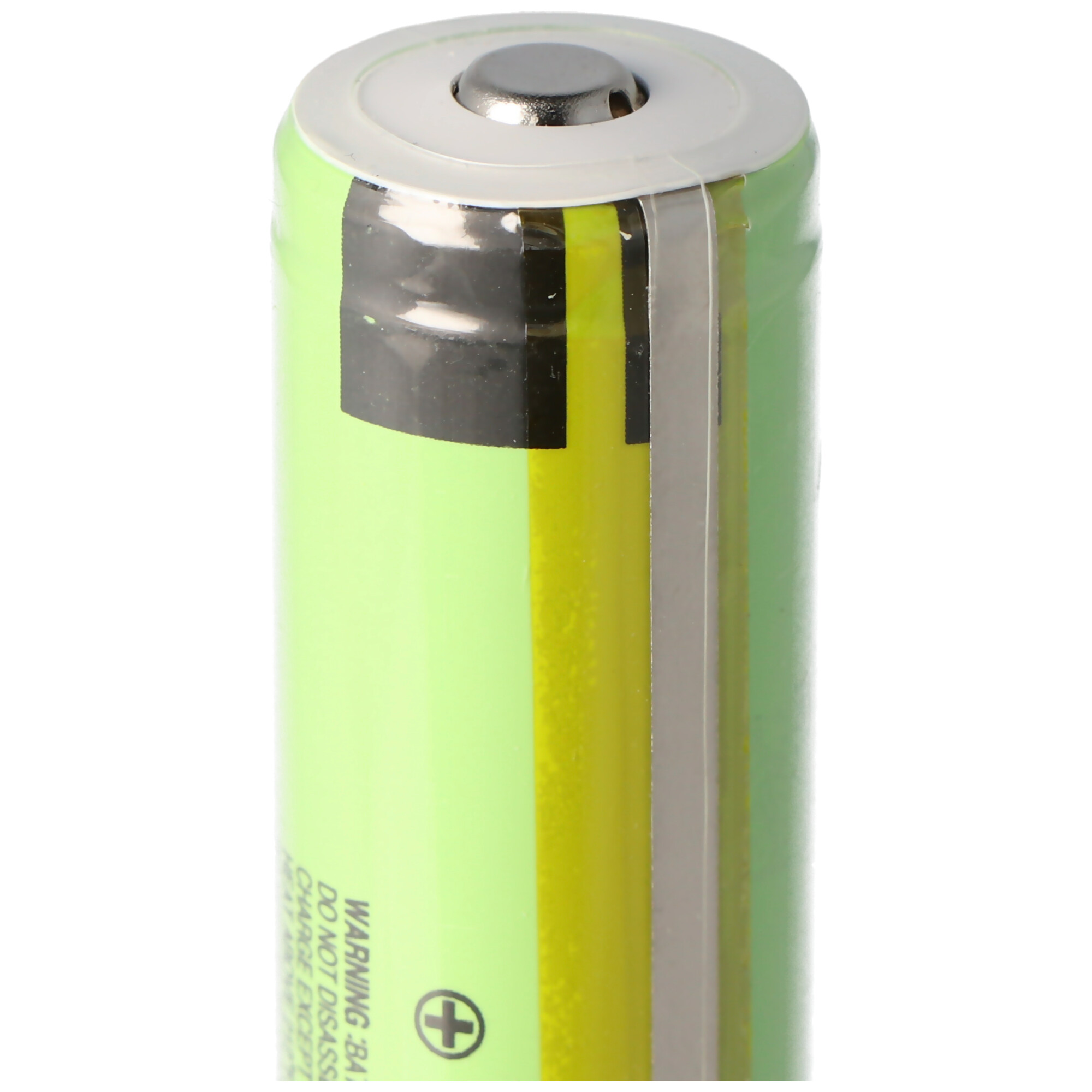

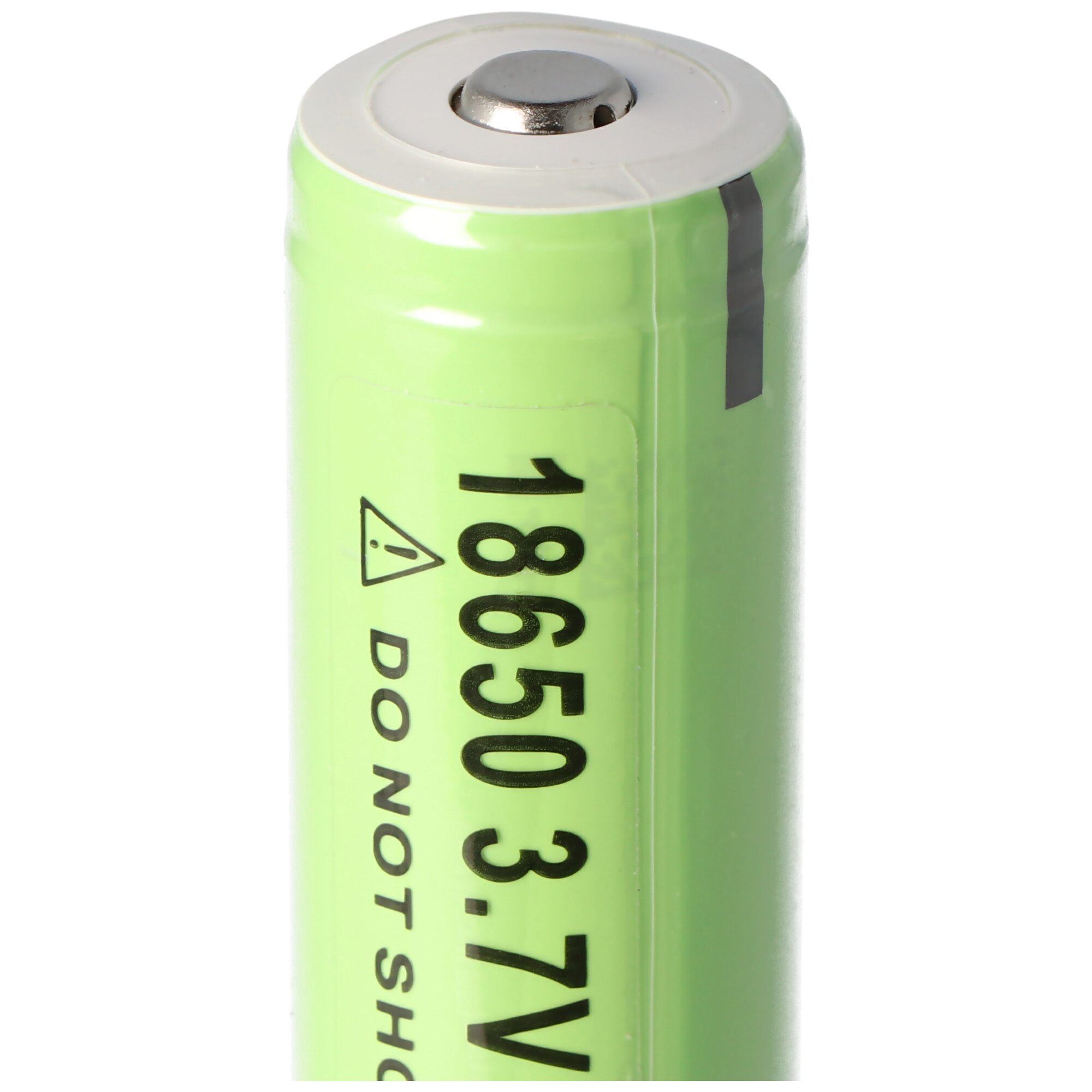

PANASONIC NCR18650 PF - 2900mAh PCB-beveiligd Battery

PANASONIC

Art.-Nr. 108243695

To compare
To the technical data

Online in stock

Delivery 22-06-2026

+ €5.90

To compare
Panasonic NCR18650 PF PCB protected Type. capacity 2900mAh Min. Capacity 2800mAh nominal voltage 3.6V charging voltage 4.2V max discharge 9A (3C) discharge voltage 2.5V protection PCB protected positive pole raised (button on top) chemistry LiNiCoAlO2 diameter 18.6 mm height 68.8 mm weight 50 g charging method CC-CV Safety note:

Lithium cells may only be used with protective electronics! Please note that removing or damaging the protective electronics (PCB) may result in a short circuit, fire or explosion.

Other features:

Lithium-ion batteries are thermally stable and have no memory effect.
They are lithium-based and characterized by a high energy density.

Specifications for "Panasonic NCR18650 PF - 2900mAh PCB-protected"

Notes:

A special charger is required to charge lithium-ion batteries, which charge the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge batteries only to about 4.1 volts, as this significantly increases the life or number of charge cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but instead continue to charge the batteries with a small charging current, which can be dangerous.

In addition, rechargeable batteries and batteries do not belong in household waste! According to the law, dispose of them in the municipal collection points or in the designated [usually green] containers of the trade.

Features

Product type

Battery

Battery type

Li-Ion - Lithium-Ion

Suitable for manufacturer

Universal

Suitable for model

Universal

Capacity

2900 mAh

Scope of delivery

1 x Battery set
