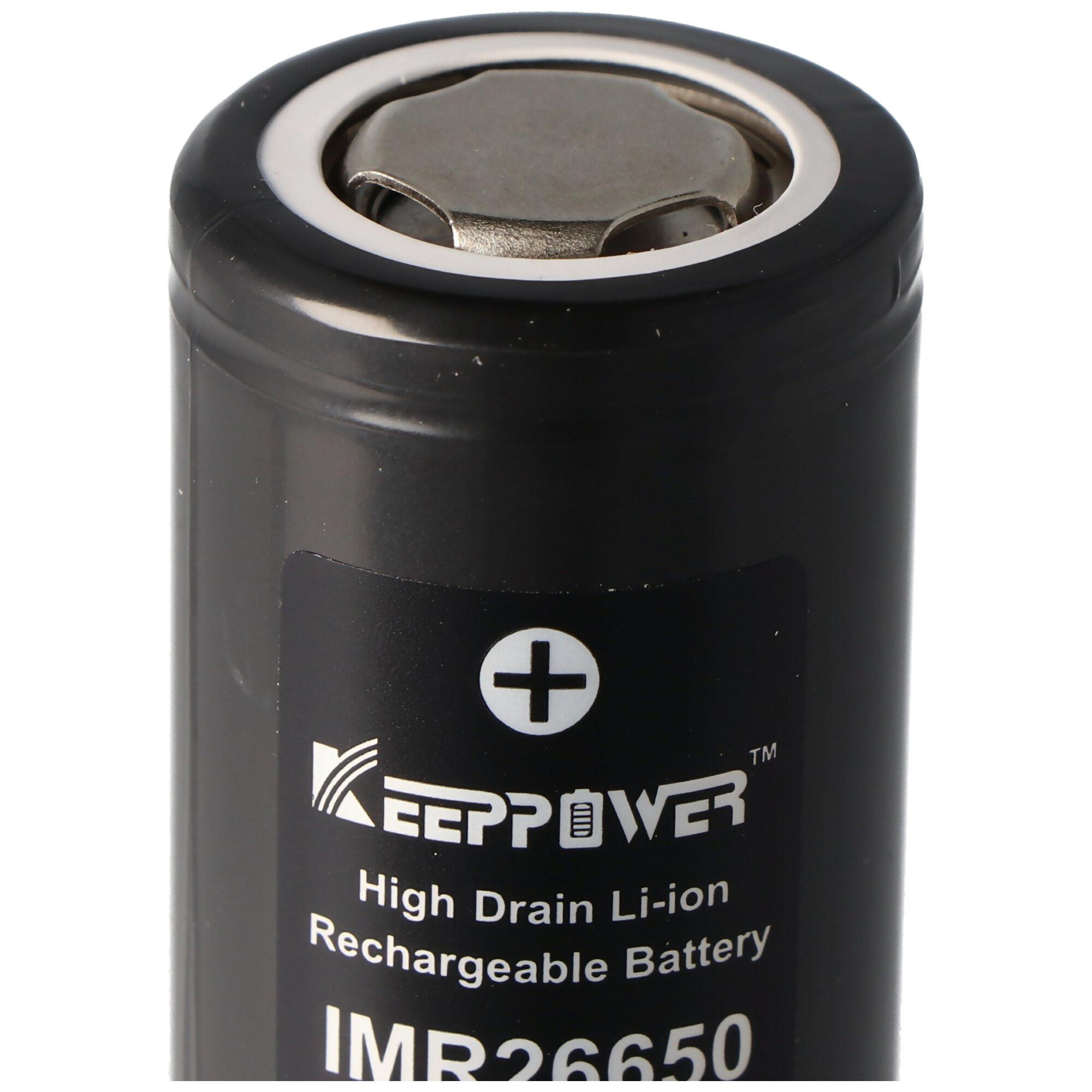

KEEPOWER Keeppower IMR26650 - 5200 mAh, 15 A, 3,6 V - 3,7 V Battery

High quality cell with long service life and high cycle stability. Developed for the field of flashlights, LEDs, regulated battery holders, etc.

Keeppower IMR26650 lithium-ion battery cell KP IMR26650 capacity 5200mAh Min. Capacity 5000mAh nominal voltage 3.6V / 3.7V charge voltage 4.2V ± 0.05V discharge voltage 2.5V positive pole elevated Max. Discharge current (pulse about 5 seconds) 30A Max. Discharge current (continuous load) 15A chemistry LiMnCo Protection circuit PCB not available charging method CC-CV diameter 26.50 mm ± 0.2 mm height 67.20 mm ± 0.2 mm weight 93 g ± 1 g comparison test Steam batteries (forum) test results Candle Power Forum safety:

Lithium cells may only be used with protective electronics!
Caution: lithium cells must only be used by authorized persons.
Improper handling or short-circuiting may cause fire or explosion.

Other features:

Lithium-ion batteries are thermally stable and have no memory effect.
They are lithium-based and characterized by a high energy density.

Technical data for "Keeppower IMR26650 - 5200mAh, 15A, 3.6V - 3.7V Li-Ion battery"

Normal charging current 2000mA / 3.5h Fast charging current 3000mA / 3h Operating temperature charging 0°C - 45°C Operating temperature of discharge -20°C - 60°C

Notes:

A special charger is required to charge lithium-ion batteries, which charges the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge batteries only to about 4.1 volts, as this significantly increases the life or number of charge cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but instead continue to charge the batteries with a small charging current, which can be dangerous.

In addition, rechargeable batteries and batteries do not belong in household waste! According to the law, dispose of them in the municipal collection points or in the designated [usually green] containers of the trade.
