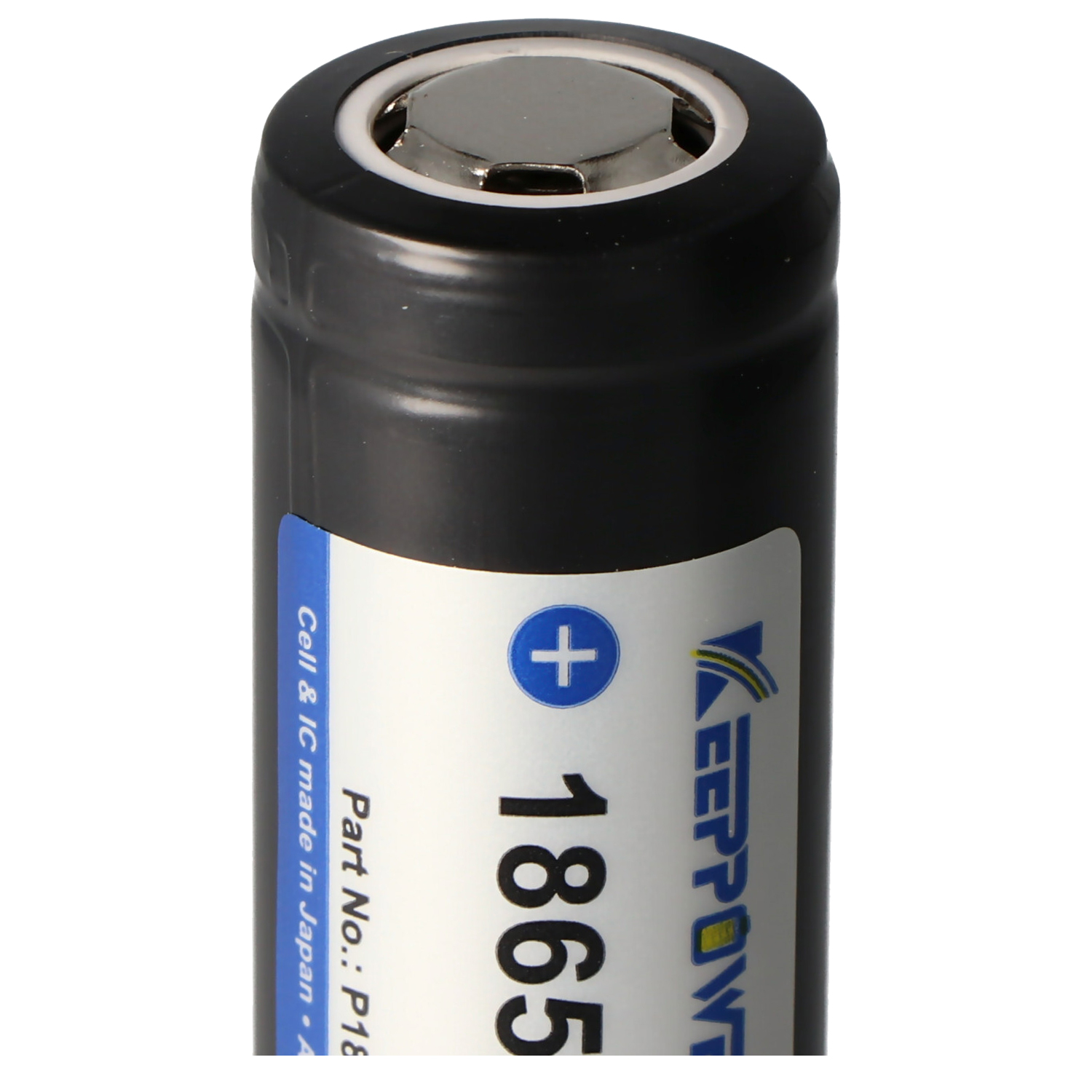

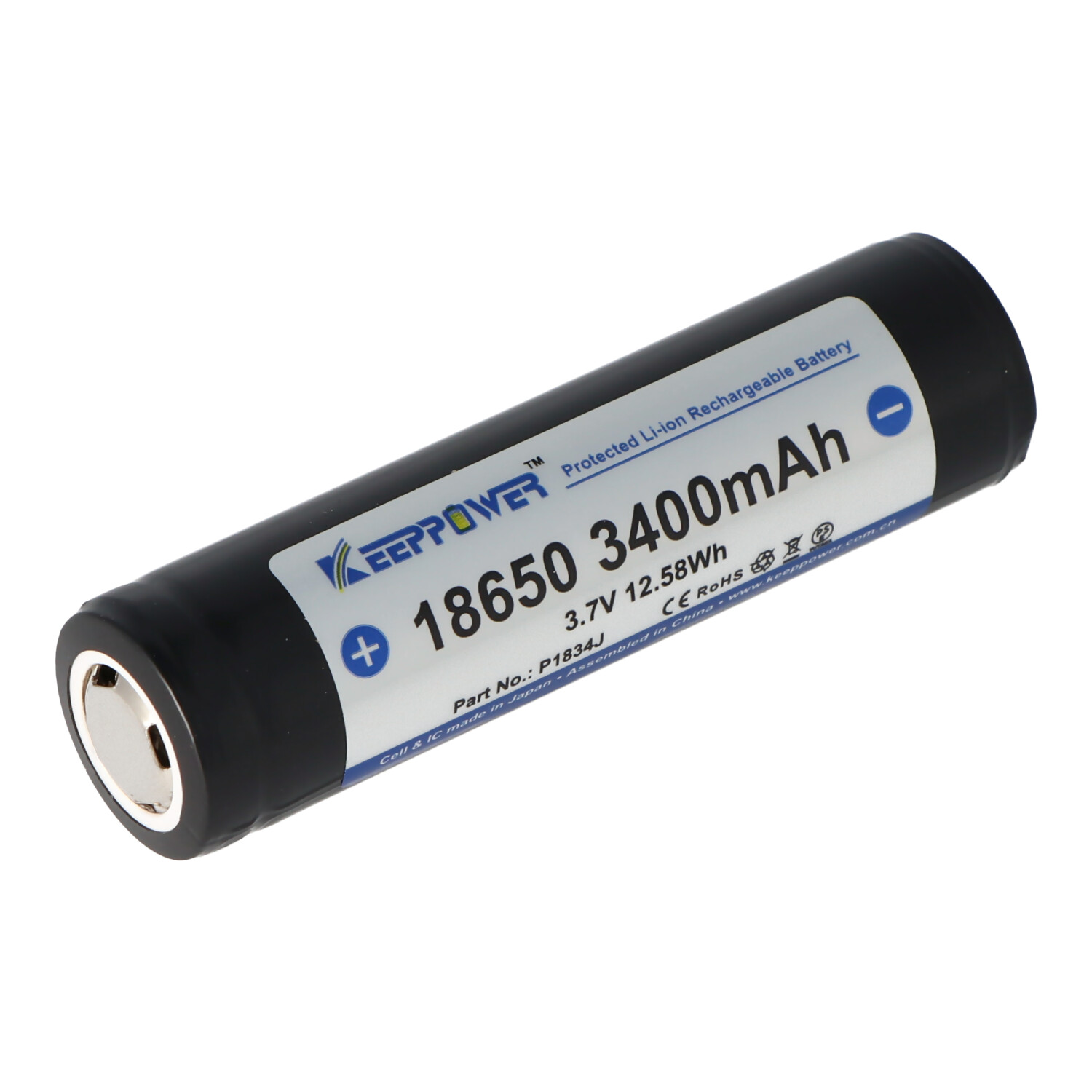

KEEPOWER Keeppower 18650 - 3400 mAh, 3,7 V Li-ionbatterij b Battery

High quality cell with long service life and high cycle stability. Seiko protection / PCB with short circuit, overload and deep discharge protection. Developed for the field of flashlights, LEDs, battery holders etc.

Keeppower 18650 PCB with lithium-ion battery protected

Please check the cell dimensions before buying! Due to the built-in electronics, the cell is not suitable for every application!
Height and diameter are larger than a standard 18650 cell without PCB.

cell Panasonic NCR 18650 B. capacity 3400mAh Min. Capacity 3300mAh nominal voltage 3.6V - 3.7V charge voltage 4.2V ± 0.05V discharge voltage 2.75V positive pole flat top Max. Discharge current 2C = 6.8A chemistry LiCoO2 (ICR) Protection circuit PCB integrated 10A charging method CC-CV diameter 18.60 mm ± 0.15 mm height 67.8 mm ± 0.15 mm weight 48 g ± 1 g test results Lygt Info Safety note:

Please note that removing or damaging the protective electronics (PCB) may cause short circuit, fire or explosion.

Other features:

Lithium-ion batteries are thermally stable and have no memory effect.
They are lithium-based and characterized by high energy density.

Technical data for "Keeppower 18650 - 3400 mAh, 3.7 V Li-ion battery protected (flat top)"

charging current 1650mAh / 3h Fast charging current 2000mAh / 2.5h Operating temperature charging 0 ° C - 45 ° C Operating temperature discharge -20 ° C - 60 ° C

Notes:

A special charger is required to charge lithium-ion batteries, which charges the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge batteries only to about 4.1 volts, as this significantly increases the life or number of charge cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but instead continue to charge the batteries with a small charging current, which can be dangerous.

In addition, rechargeable batteries and batteries do not belong in household waste! According to the law, dispose of them in the municipal collection points or in the designated [usually green] containers of the trade.
