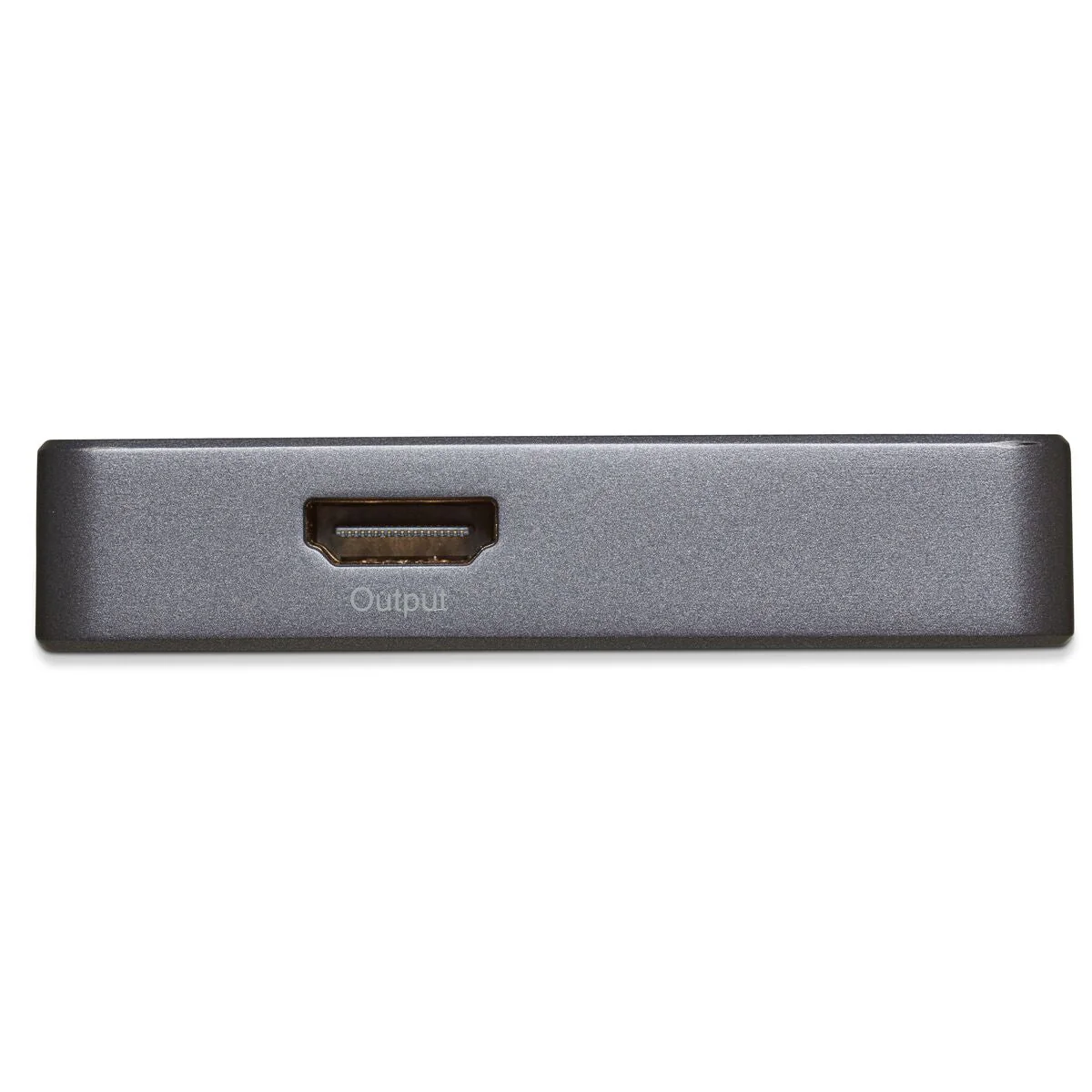

MARMITEK Connect 620 UHD 2.0 HDMI switch Gray

The hdmi switch 25008336 helps you to connect equipment quickly and reliably. Important search terms: 4K, 8K, HDMI 2.1.

Suitable for home use and installations where stable connections are important.

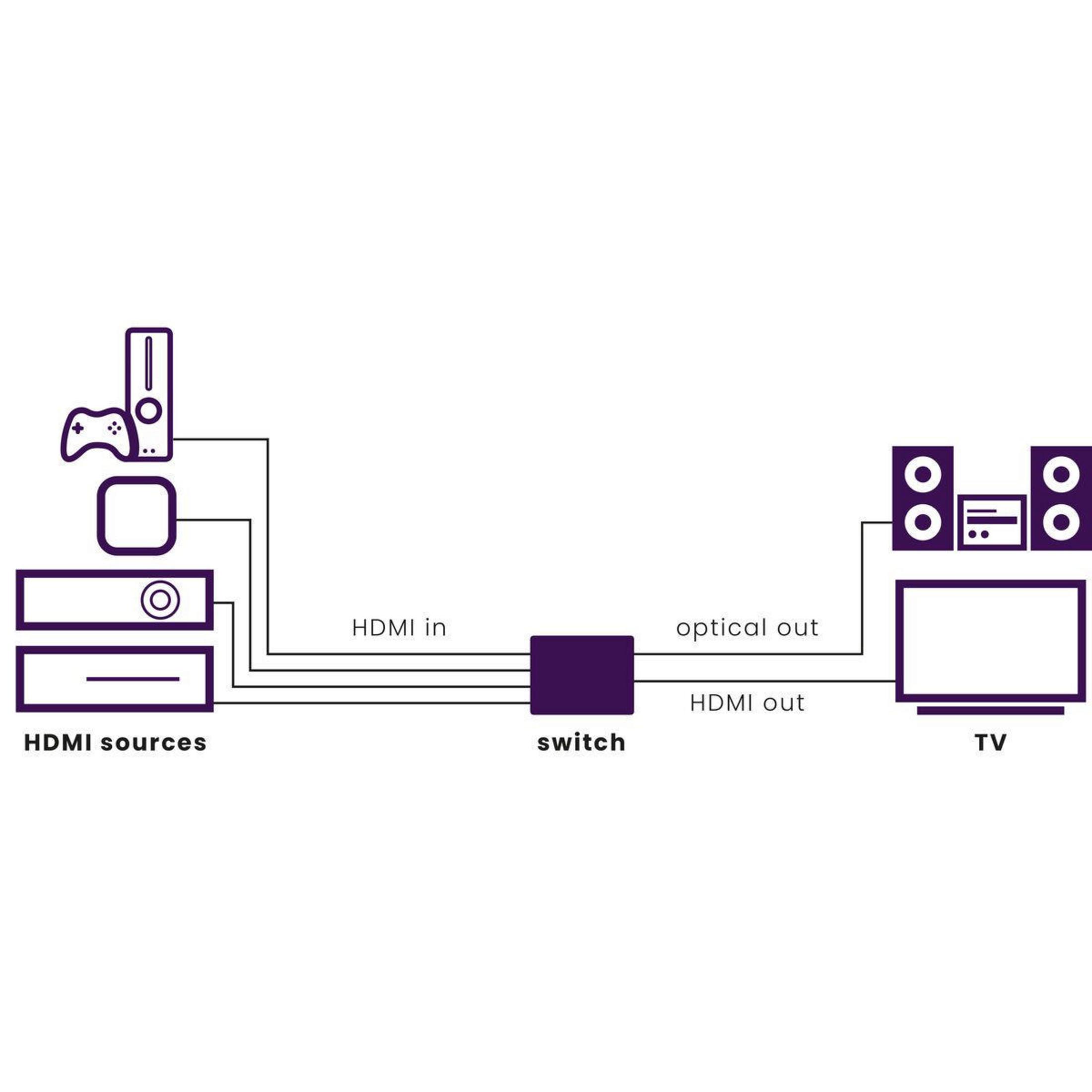

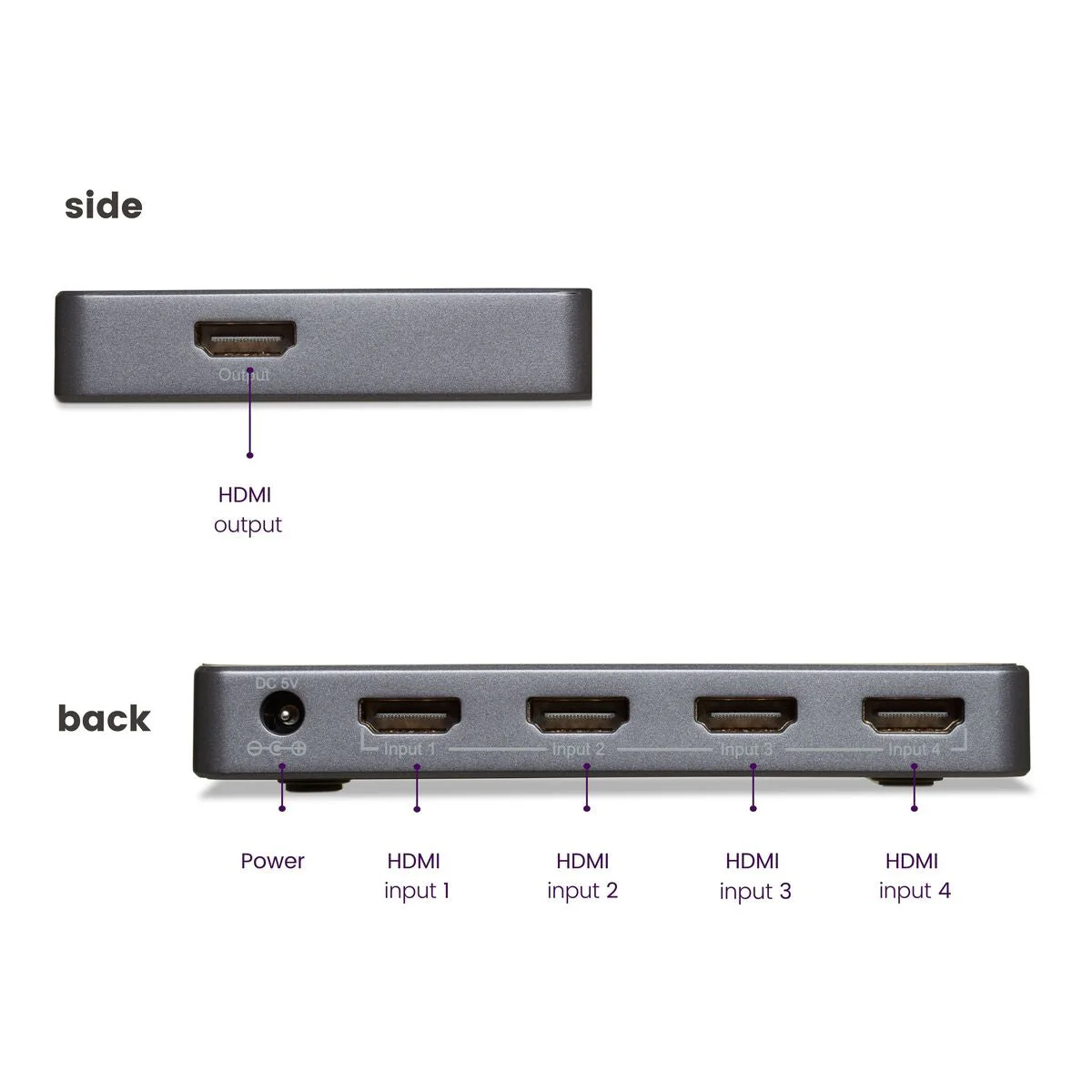

Connect 4 devices to the HDMI input on a TV or projector with just one cable.

Connect four devices to the HDMI connection of a television or projector with just one cable.

With the Connect 620 UHD 2.0, you can connect up to 4 devices to your TV with just one cable.

• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160/60 Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colors.

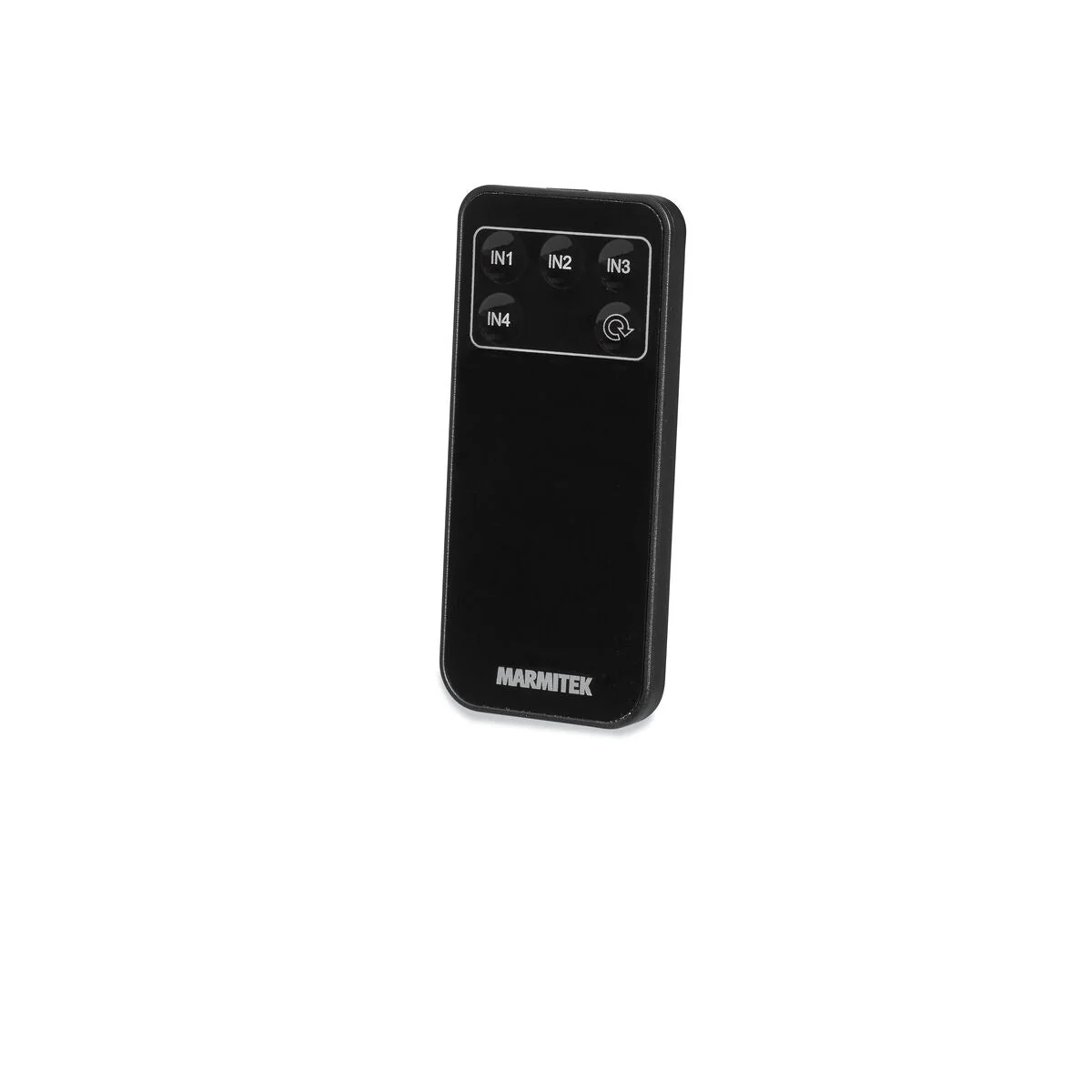

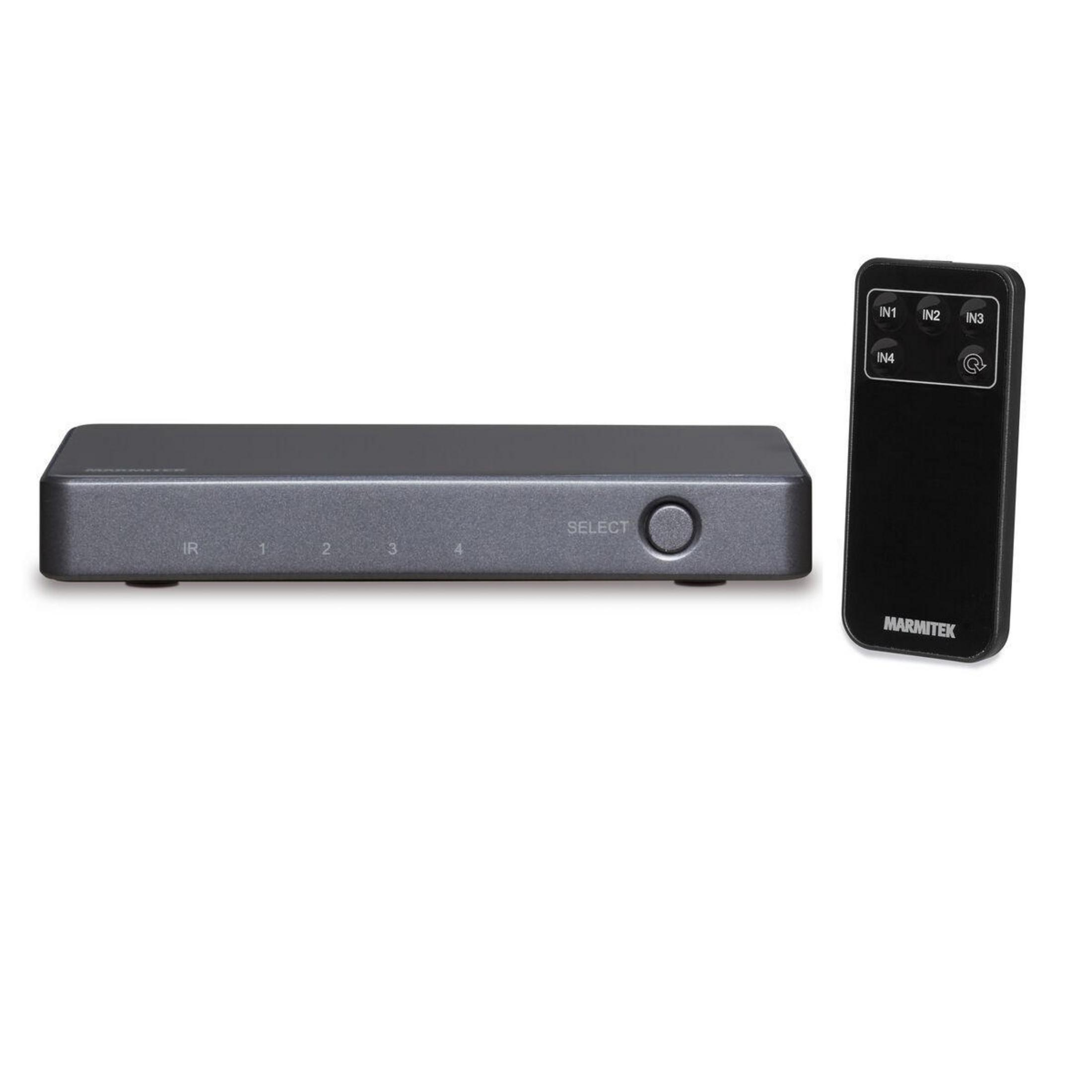

• Switches automatically and/or with remote control


• With built-in repeater and equalizer for correcting possible signal loss.


• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K while maintaining ultimate contrast and beautiful colors.


• Supports HDCP 2.2 for playing protected 4K Ultra HD content.

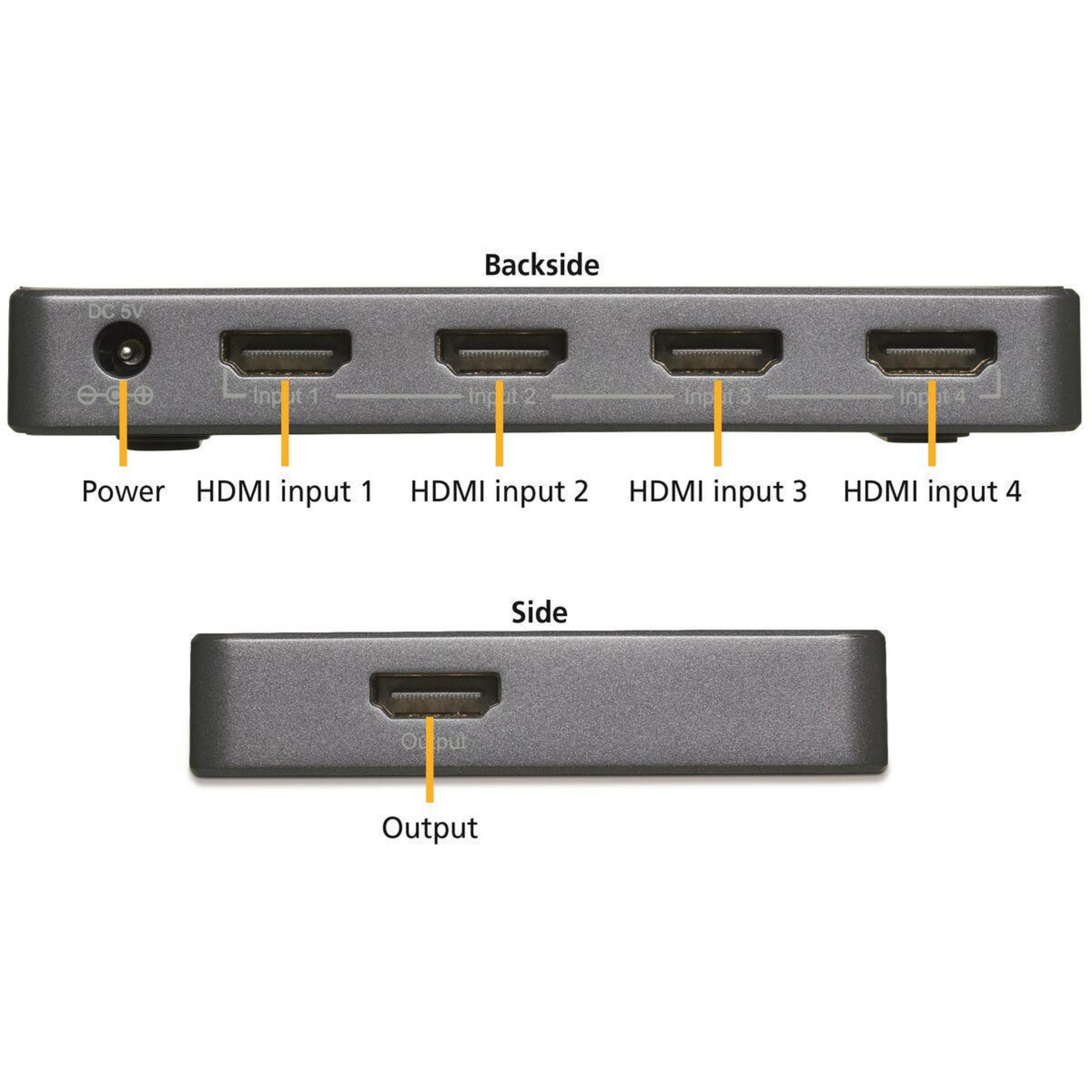

• Suitable for simultaneously connecting 4 HDMI devices to your TV.


• Supports Dolby Atmos and DTS:X and all other common audio formats.

The UHD 2.0 series is suitable for connecting the very latest Ultra HD devices equipped with HDMI 2.0 and HDCP 2.2 copy protection.

HDMI 2.0
The main improvement of HDMI 2.0 compared to HDMI 1.4 is a larger bandwidth (higher speeds), which enables 4K at higher frame rates and HDR.

The amount of transferable data is increased from 10.2 Gbps to 18 Gbps. This makes it possible, among other things, to display 4K at 50-60 frames per second, 4:4:4, and HDR. HDMI 2.0 also supports the transfer of a higher color system (12-bit instead of 8-bit) and Dual View.

HDCP 2.2
4K Ultra HD content is increasingly becoming the standard. Based on this development in digital imaging technology, the modern copy protection HDCP has been further developed to HDCP 2.2. To be able to play the latest Ultra HD content (4K movies or television programs) in the best possible image quality, all your AV devices in the same circuit must support HDCP 2.2 copy protection.

So it doesn't just work on the source and the TV itself. For example, if you want to route an HDMI signal via an HDMI switch, splitter, AV receiver, or soundbar, they must all be compatible with HDCP 2.2. If not, the material will not be transmitted in the highest possible resolution (1080p instead of 4K) + associated image quality, or sometimes not at all.

Well prepared
With Marmitek UHD 2.0 Switchgear, you prevent such (future) problems and get the most out of your (current) devices. This series is compatible with HDMI 2.0/HDCP 2.2 and is therefore the best solution for connecting HDMI equipment and the television.

HDR
HDR stands for High Dynamic Range and provides images with greatly improved brightness and higher contrast (brighter white and deeper black). Combined with higher color reproduction, this creates a more realistic and natural image. However, to use HDR, your television must be able to support an HDR feature. Content displayed in HDR quality (including 4K Blu-ray, Netflix, and YouTube) can then be played on your TV as usual. HDR does not add other pixels, like 4K Ultra HD, but makes the existing pixels stand out better.

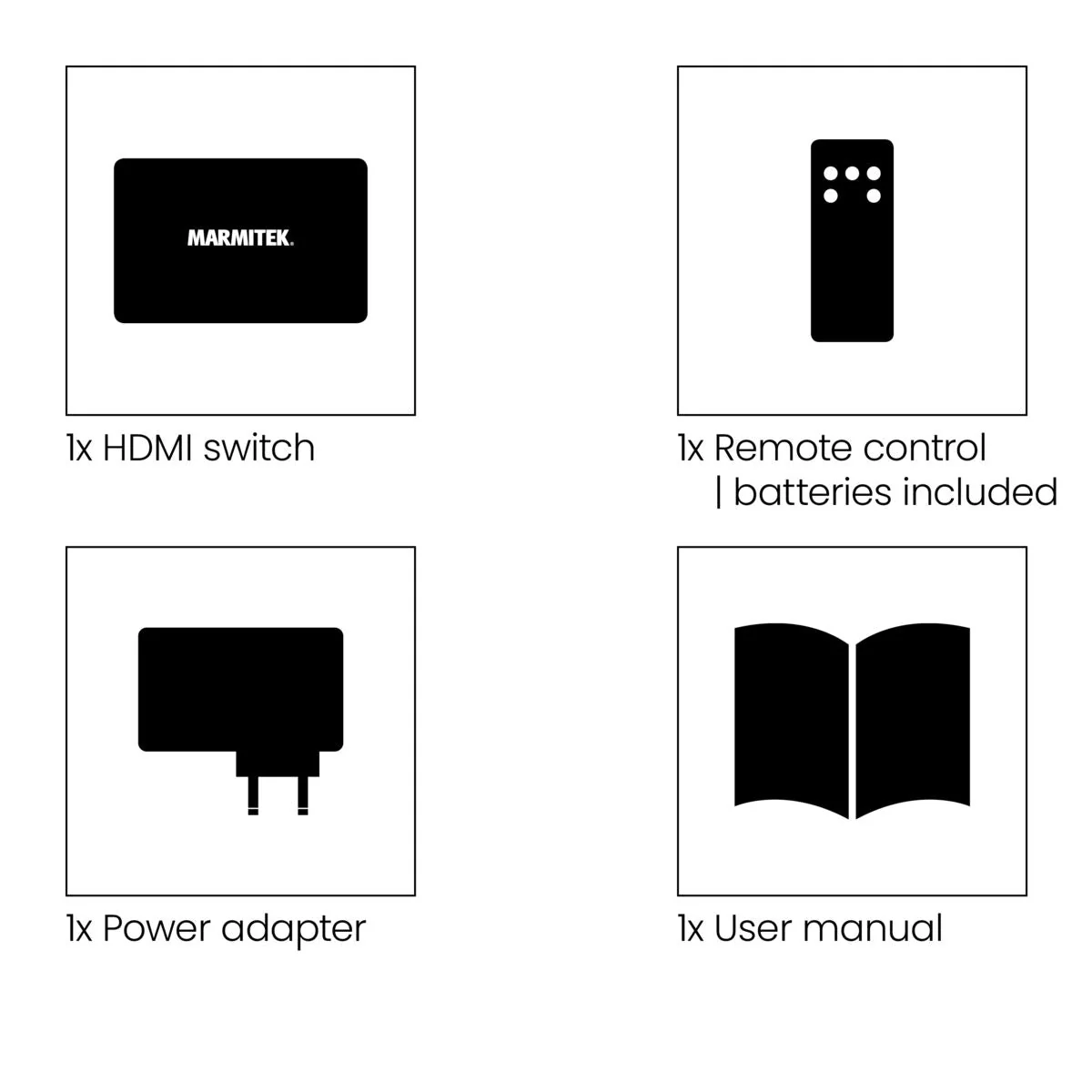

Package contents

• HDMI switch Power adapter Remote control
• batteries included

About Marmitek

Marmitek is a Dutch brand that has been developing smart solutions since 1996 to use and control image and sound throughout and around the house. Marmitek offers handy problem solvers for connecting, splitting, and wirelessly connecting audio and video equipment.
