RESPEKTA
Art.-Nr. 94586486

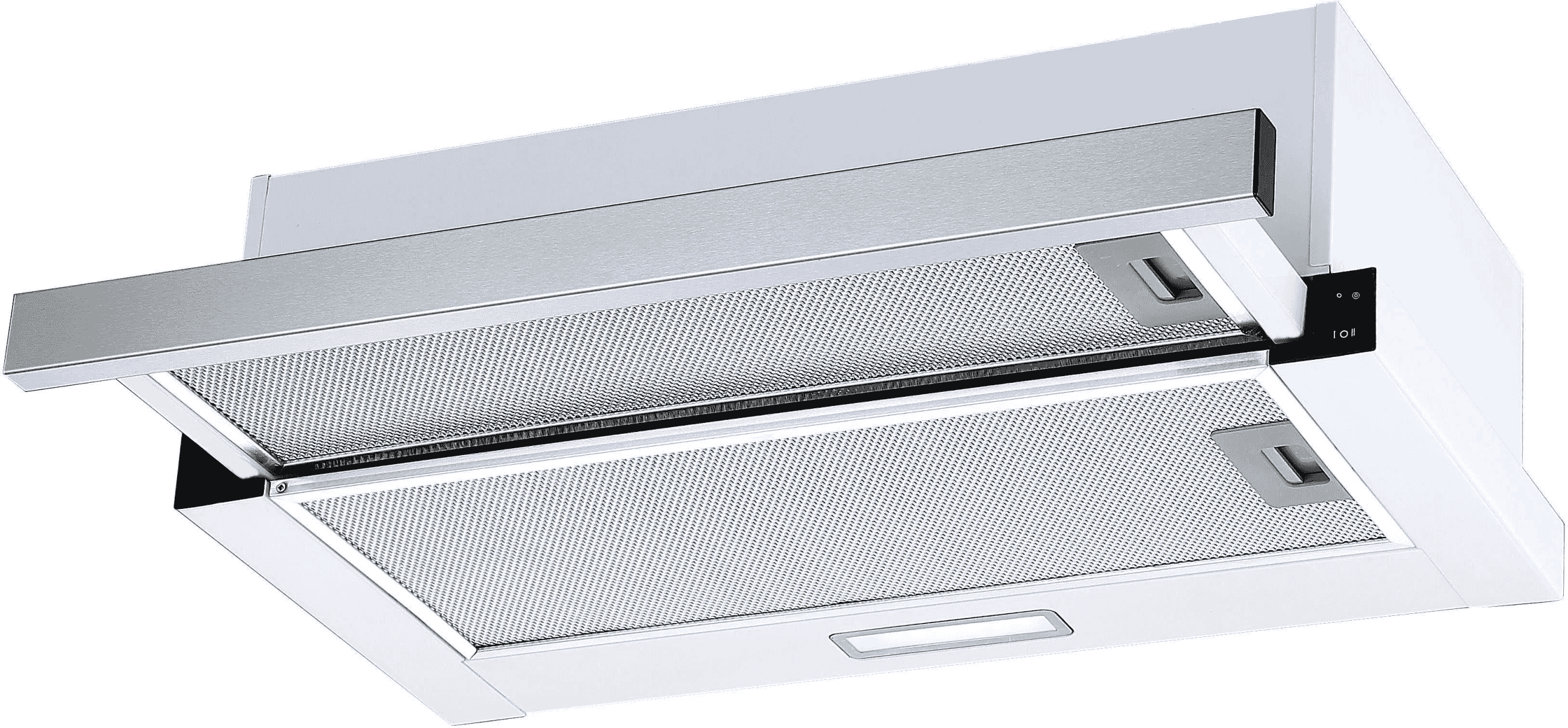

RESPEKTA CH 4138 IXC base hood - Width 60 cm - 213 m³/h - 53 dB(A)
RESPEKTA
Art.-Nr. 94586486
RRP €275.00
Manufacturer's recommended retail price
incl. VAT and free shipping above €50,-
Sold and shipped by Kitchcom Nederland
Online in stock
Delivery 24-06-2026 - 25-06-2026
+ € 0,–
Operating characteristics/technical data
Annual energy consumption: 32 kWh / year Energy efficiency class: C Fluid dynamic efficiency: E Lighting efficiency: A Grease separation efficiency: F Airflow at min/max speed: 124 m³/h - 213 m³/h A-weighted airborne noise emission at min/max speed: 53 dB / 64 dBEquipment features
Operation via rocker switch Material: Painted sheet steel Speed levels: 3 Lighting max: 1 x 2 watt LED Tube connection (diameter): 120 mm Voltage / frequency: 230 V / 50 Hz Connected load: 62 watts Incl. metal grease filter 1x (already included and washable) Active carbon filter mat for recirculation mode 1x optionally availableDevice dimensions

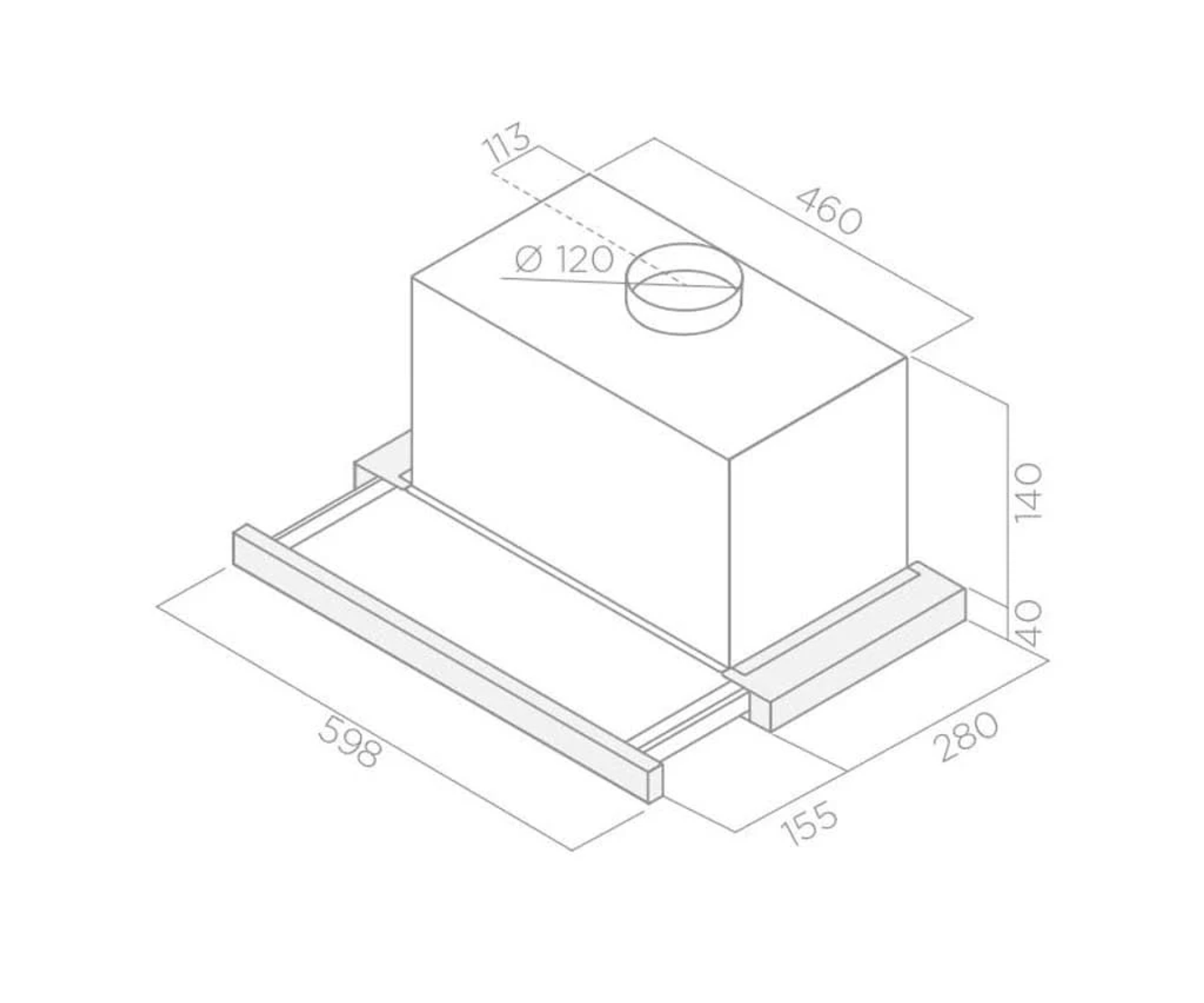

Device dimensions (H x W x D) / weight: 19.9 x 60 x 28-43 cm / 5.8 kg With packaging (H x W x D) / Weight: 33.5 x 66.5 x 22.5 cm / 6.7 kgTechnical features | |
|---|---|
Product type | Under-cabinet exhaust hood |
Construction shape | base hood |
Discharge system | Exhaust/Convection changeable |
Maximum outgoing air flow rate | 213 m³/h |
Total power motor | 62 W |
Number of motors | 1 |
Fan levels | 3 |
Intensity level | Yes |
Volumetric air flow | 213 m³/h |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Odour filter | Yes |
Type of control | mechanical |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 2 W |
Power supply | |
|---|---|
Input voltage | 230 V |
Frequency | 50 Hz |
fuse | 16 A |
General features | |
|---|---|
Case material | Stainless steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 120 mm |
Length of power cable | 1.2 m |
Width | 60 cm |
Depth | 28 cm |
Color (by manufacturer) | silver |
Weight | 5.8 kg |
Power cable included | Yes |
Packsize | 66.5 cm / 33.5 cm / 22.5 cm |
| General Product Safety |
|---|
| GTIN4260515339385 |
| Product typeUnder-cabinet exhaust hood |
| Manufacturer |
|---|
| ManufacturerNEG Novex GmbH |
| Websitewww.respekta.de |
| E-mail[email protected] |
| EU establishedYes |
| AddressChenover Straße 5 |
| CityLimburgerhof |
| Postcode67117 |
| CountryGermany |
| Address suffixChenover Straße 5 |
