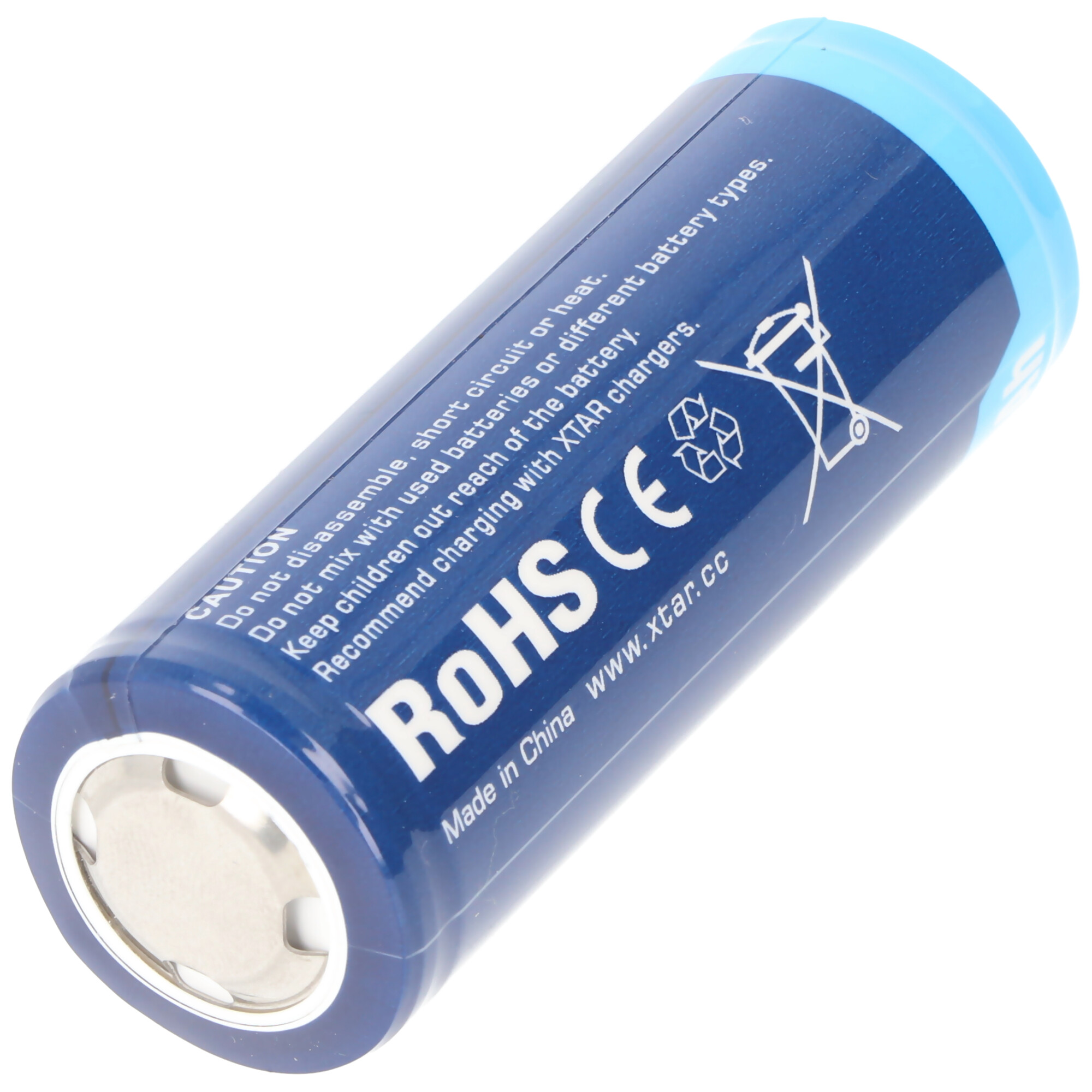

XTAR 26650 - 5200 mAh, 3,6 V - 3,7 V Li-Ion Battery

High quality cell with long life and high cycle stability. Protection / PCB with protection against short circuit, overload and deep discharge. Developed for the fields of flashlights, LEDs, industry, battery mods and model making.

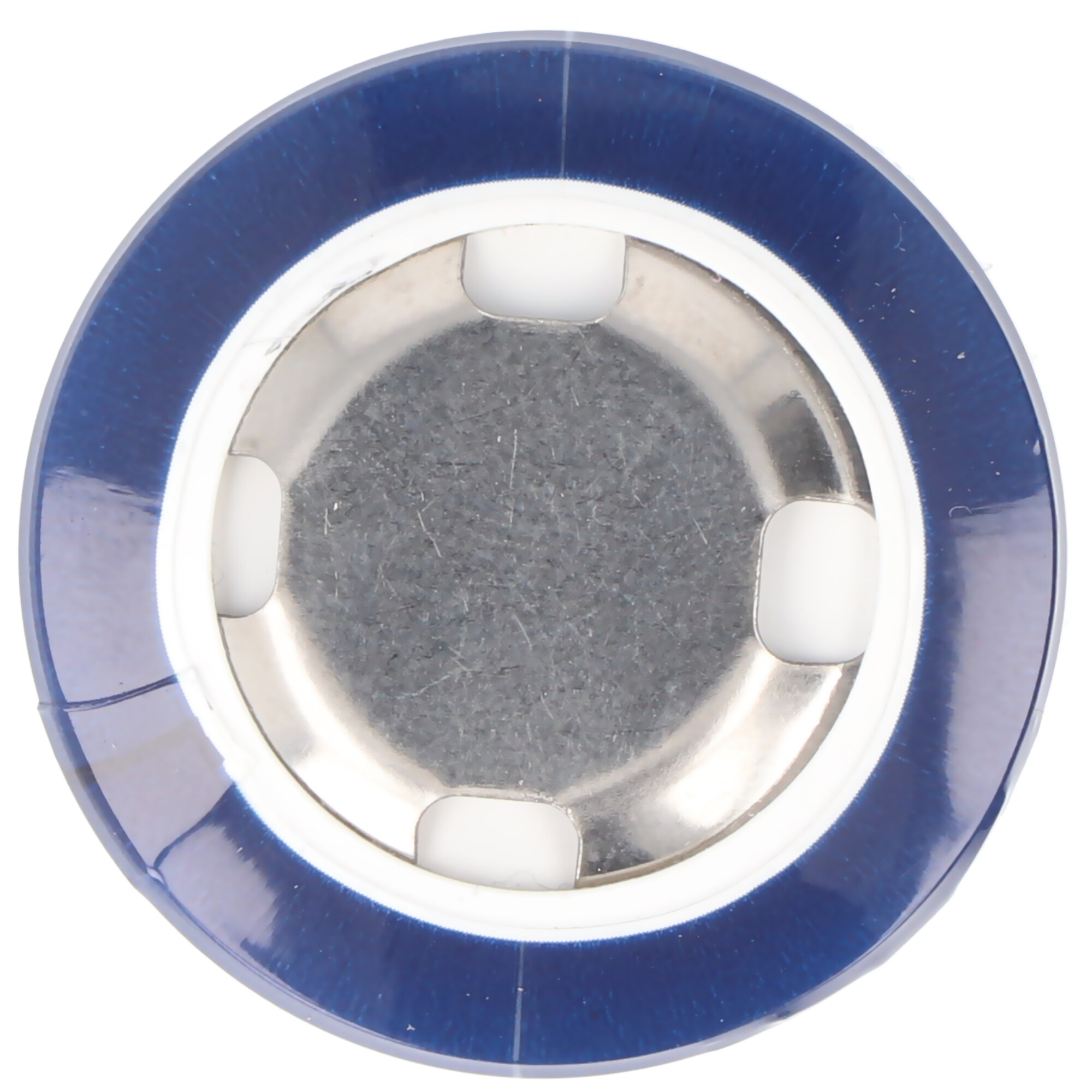

XTAR 26650 lithium-ion battery PCB protected cell unknown Capacity (mAh) 5200 mAh Min. Capacity (mAh) 5140 mAh Nominal voltage (volts) 3.6 V - 3.7 V End-charge voltage (volts) 4.2 V ± 0.05 V End-discharge voltage (volts) 2.75V Positive pole (structure) flat top Max. Discharge current (continuous load) 7A Protection circuit PCB Yes (7A) Charging method CC CV Diameter (mm) 26.50 mm ± 0.3 mm Height (mm) 68.2 mm ± 0.5 mm Weight (g) 98.0 g ± 1 g Protection advice:

Please note that removing or damaging the protective electronics (PCB) may result in short circuit, fire or explosion.

Other options:

High-quality cell with long life and high cycle stability.
Lithium-ion batteries are thermally stable and have no memory effect.
They operate on the basis of lithium and are characterized by a high energy density.

Scope of delivery:

1x XTAR 26650 battery

Technical data for "XTAR 26650 - 5200 mAh, 3.6V - 3.7V Li-ion battery, PCB-protected"

Charging current normal / charging time 0.xx - 1000mA Rapid charge current / charge time 1500mA / 3.5 hours Operating temperature charging 0 ° C - 45 ° C Operating temperature discharging -20 ° C - 60 ° C

Tips:

Charging lithium-ion batteries requires a special charger that charges the batteries through a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a danger of fire and explosion. It is advantageous to charge the batteries only to about 4.1 volts, as this significantly increases the service life or number of charging cycles (possibly up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers sometimes have the disadvantage that they do not safely switch off after the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.

Furthermore, batteries and accumulators do not belong in the household waste! Dispose of them as prescribed by law at municipal collection points or in the (usually green) containers of the trade.
